Design Steps for Pneumatic Conveying in Grain Silos, Port Operations, and Mobile Grain Handling Machines

Pneumatic conveying is crucial in grain handling. Here are the design steps for three key applications at Jstark, a provider of innovative solutions.

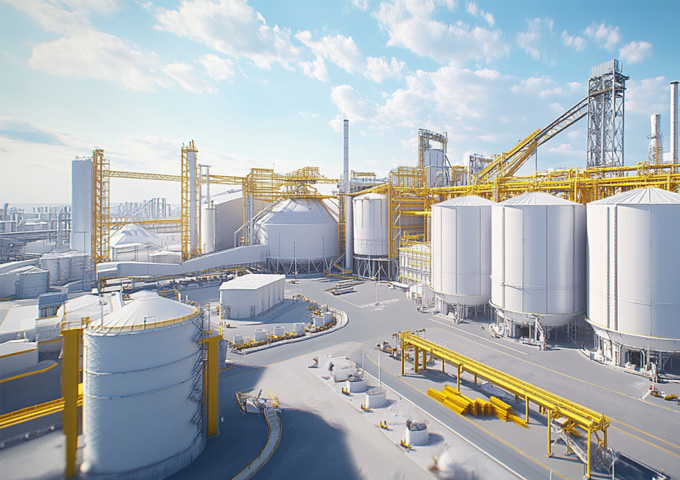

Grain Silo Loading/Unloading

Needs Analysis: Assess silo scale, capacity, loading/unloading frequency, and grain types to set system requirements for conveying capacity, distance, and speed.
System Selection: Pick the right conveying type (vacuum, pressure, or hybrid) based on needs. Vacuum for silo bottom cleaning, pressure for long - distance/high - capacity, and hybrid for combined benefits.
Equipment Selection: Choose suitable components like air supply (e.g., Roots blowers), pipelines, feeding, and discharge devices according to system type and volume.
Pipeline Layout: Plan the layout in line with silo structure, minimizing bends and leakage.
Control System Design: Create an automated system for start/stop, speed control, and fault alarms.
Safety & Environmental Design: Install dust filters and safety devices to ensure safety and reduce emissions.

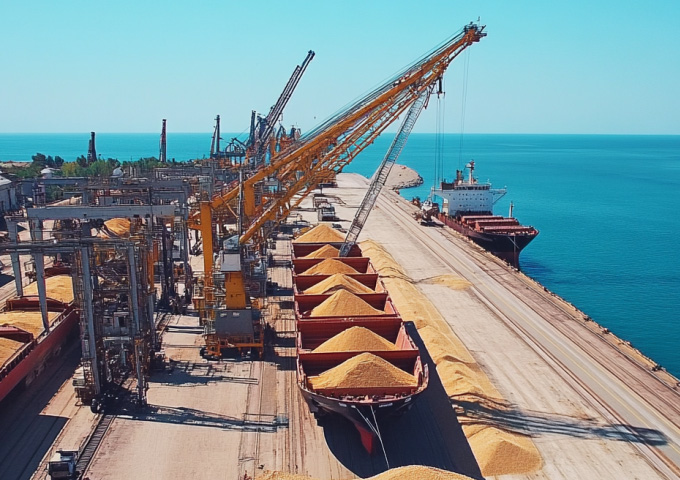

Port Operations

Operational Survey: Gather data on cargo types, ship configurations, port layout, and throughput for design.
Conveying Capacity Determination: Calculate required capacities to meet unloading efficiency goals.
Conveying Method Selection: Select vacuum/pressure for grains, dense - phase for powders to reduce dust.
Equipment Configuration: Choose high - power air supply (e.g., centrifugal blowers), loading/unloading devices, and determine pipeline details.
System Integration: Combine equipment for smooth material flow and integrate with other port equipment.
Monitoring & Maintenance Design: Install remote monitoring and plan maintenance for long - term operation in harsh port conditions.

Mobile Grain Handling Machines

Function Definition: Define the machine's scope, capacity, and working environment, identifying mobility, flexibility, and efficiency needs.
Power Source Selection: Choose diesel engines or electric motors for the pneumatic system.
Conveying Component Design: Design compact, efficient devices with mini - air supply, retractable/foldable pipelines, and user - friendly suction/discharge parts.
Mobility System Design: Select chassis and mechanisms for maneuverability, and design a frame to support components.
Operation & Control System Design: Provide an easy - to - use interface with safety features like emergency stops.
Appearance & Protection Design: Design the exterior for ergonomics and add anti - corrosion/dust - proof measures for durability.

antages-In-the-Grain-Industry-Through-Its-Advanced-Technologies02

The Pneumatic Conveying Team Has Established Significant Advantages In the Grain Industry Through Its Advanced Technologies:

High-Efficiency Conveying Technology: Capable of rapid loading, unloading, and continuous operation, enabling the transportation of large quantities of grain in a short time. This ensures seamless production processes and improves overall operational efficiency.

Eco-Friendly Sealing Technology

Featuring a fully enclosed system with food-grade materials, it effectively suppresses dust emissions, prevents grain contamination, and ensures a clean working environment and safe grain quality.

Flexible Layout Technology

Designed to accommodate complex terrains and spaces, pipelines can be flexibly arranged to achieve multi-point conveying, meeting the diverse transportation needs of the grain industry.

Stable Operation Technology

With a simple structure and intelligent monitoring, the system has fewer moving parts, resulting in lower failure rates. Real-time monitoring ensures stable and reliable operation.

Energy-Saving Technology

Through automation and optimized system design, the solution reduces labor and energy consumption, achieving cost-effective and energy-efficient conveying.

Solution

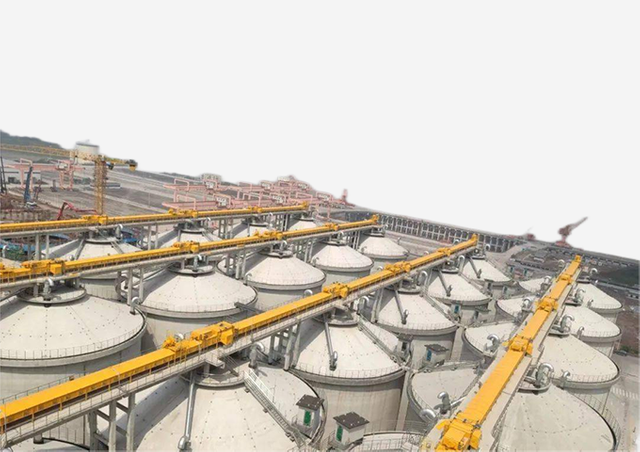

Grain Warehouse Loading and Unloading

In the operation of grain warehouse loading and unloading, the pneumatic conveying system can quickly and accurately suck in and discharge grains with its characteristics of high efficiency and low loss, greatly improving the efficiency of warehousing operations.

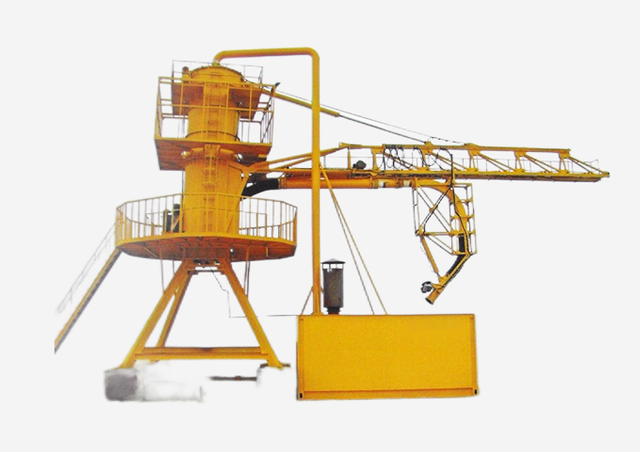

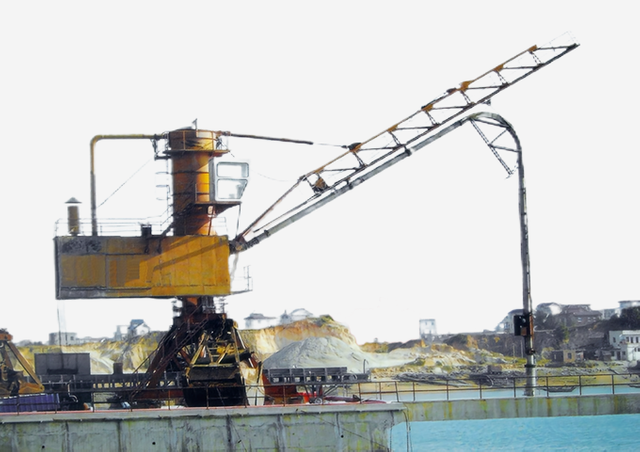

Port Loading and Unloading

In the port loading and unloading scenario, the pneumatic conveying system, with its strong conveying capacity and flexible pipeline layout, can efficiently transfer various bulk cargoes between different ship types and terminal facilities, significantly shortening the loading and unloading time.

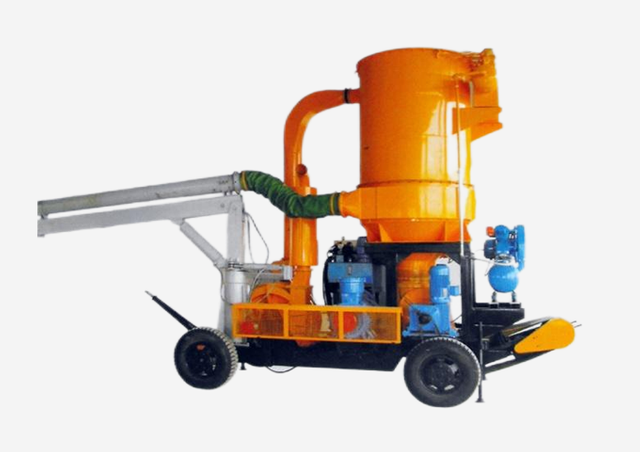

Mobile Grain Loader

The mobile grain loader adopts pneumatic conveying technology. With its advantages of high mobility and convenient operation, it can quickly start operations in various complex sites and complete the rapid loading, unloading and transshipment of grains.

Jstark is dedicated to providing tailored, high-quality pneumatic conveying systems for different industries, ensuring optimal performance and reliability.
