The Multi-effect Precision Mixer (referred to as the Precision Mixer or JMEM) is a newly designed pneumatic mixing device specifically developed to produce lithium battery cathode materials. It is suitable for the uniform mixing of "powder-to-powder" in cathode materials. The mixer offers comprehensive advantages, including no contamination from magnetic substances, energy efficiency, and environmental friendliness.

The JMEM employs airflow to propel the materials. During the feeding operation, this causes the particles to enter the mixing chamber in a suspended, dispersed, and fluidized state, facilitating collision - based mixing. The airflow serves to control the shape of the collision - mixing interface. This enables the particles to interpenetrate upon impact and also determines the escape paths of the particles after the collision. Moreover, within the material bin, a pulsed airflow is utilized to agitate the materials, thereby achieving efficient and homogeneous mixing.

Advantages:

Energy saving of over 70%
No Contamination from Metal Impurities
Proprietary Pneumatic Mixing Technology

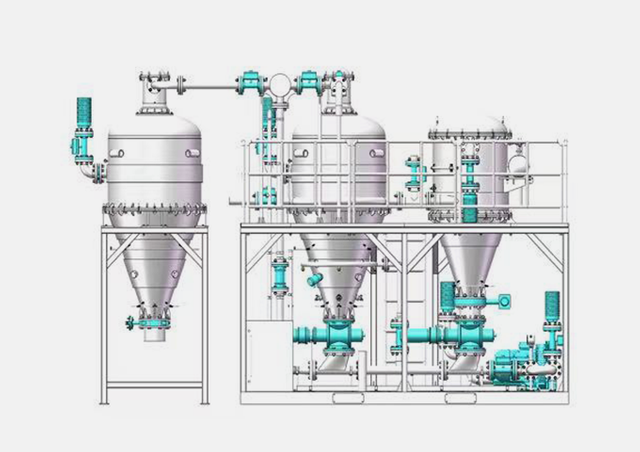

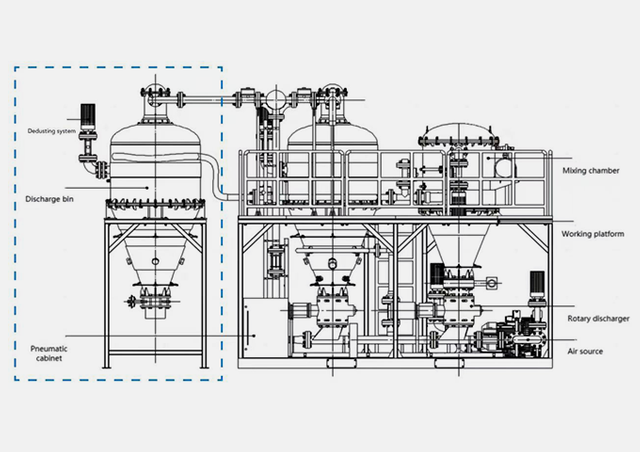

The JMEM has a high level of integration, combining processes such as feeding, mixing, discharging, and dust removal on the same skid unit.
The JMEM uses PLC automatic control, ensuring stable operation and intelligent handling, capable of achieving unattended operation.

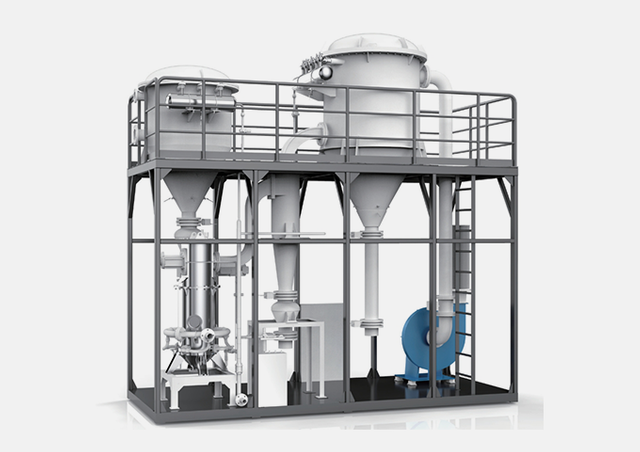

JMEM Series Powder Mixer

	MEM-300	MEM-500	MEM-800	MEM-1000
Effective volume(L)	300	500	800	1000
Mixing time(min)	≤30	≤30	≤30	≤30
Installed power(Kw)	20	25	30	35

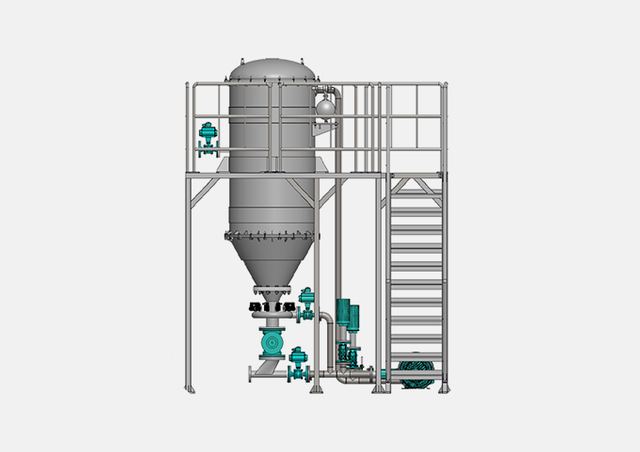

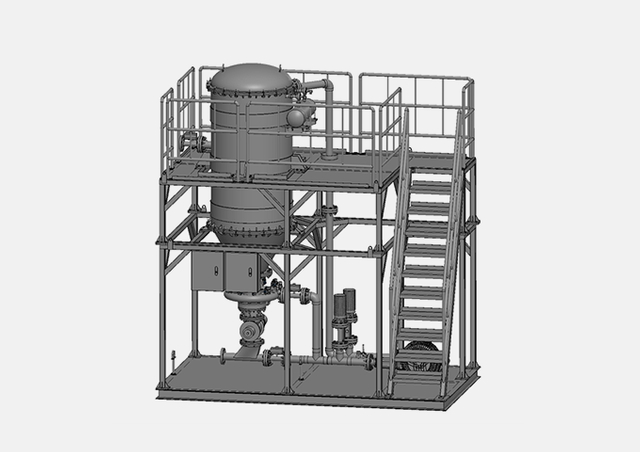

JPBM Series Pneumatic Mixer(Air Mixer)

	PBM-1	PBM-2	PBM-4	PBM-6	PBM-10
Total volume(m³)	1	2	4	6	10
Effective volume(m³)	0.6	1.2	2.4	3.6	6
Mixing time(min)	≤10min	≤10min	≤10min	≤10min	≤10min
Installed power(kw)	7.5Kw	7.5Kw	7.5Kw	7.5Kw	7.5Kw

Name	Size	Downloads	Update	Download
A Pneumatic Device for Batch Mixing of Powders.pdf	662KB	14	2025-03-04	Download
Introduction to PMT Airflow Mixing Equipment.pdf	474KB	13	2025-02-12	Download
A Pneumatic Mixer for Efficient Mixing of Cathode Materials.pdf	1010KB	12	2025-02-12	Download

Core Advantages

Mixing using pneumatic method without mechanical stirring shaft

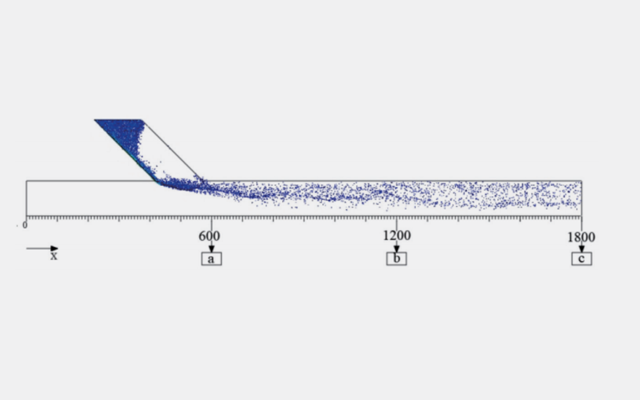

Powder Suspension Dispersion Technology Model

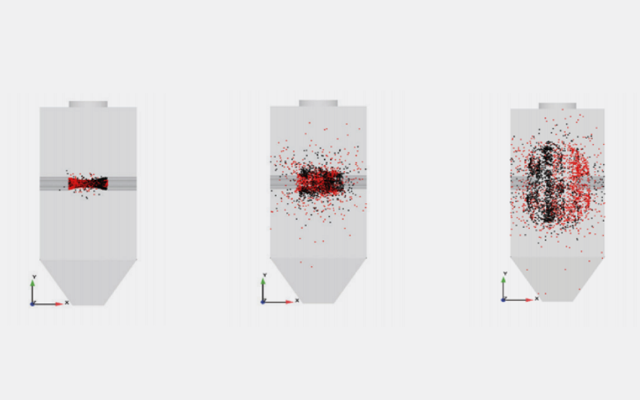

Collision Diffusion Technology Model

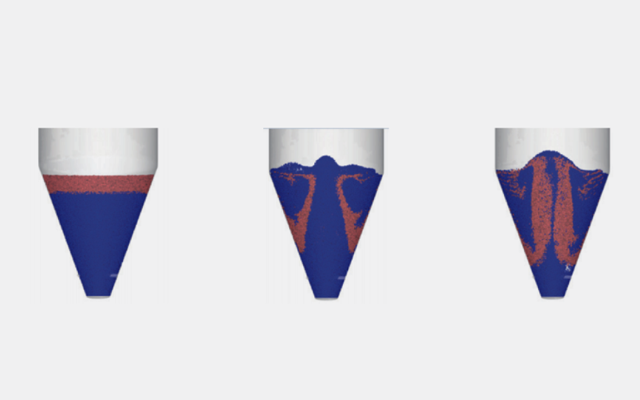

Pulsed Mixing Technology Model

Powder-Powder Material Mixture
