Pneumatic Conveying in Food Logistics and Warehousing
Pneumatic conveying is a highly efficient method of transporting loose materials by utilizing gas (usually air) as the driving force. In the field of food logistics and warehousing, pneumatic conveying technology has been widely applied, particularly in loading, storage, and processing stages. This article will delve into its specific applications and advantages.
1. Loading Stage of Pneumatic Conveying

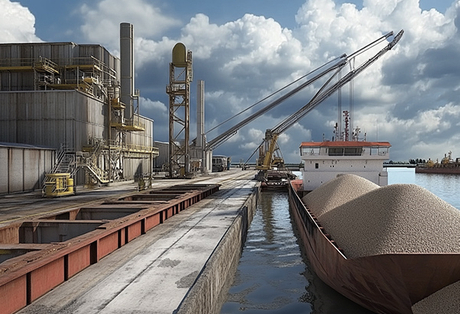

- Ports and Terminals: In the import/export operations of food at ports, pneumatic conveying systems are extensively used to transport food from bulk cargo ships to onshore storage facilities via pipelines. This method reduces the need for manual labor and enhances loading efficiency.
- Trains and Trucks: In railway and highway transportation, pneumatic conveying can rapidly transfer food from train cars or truck trailers to storage facilities, eliminating traditional manual handling and reducing physical strain.
2. Storage Stage of Pneumatic Conveying
- Internal Transportation in Warehouses: Within large grain silos, pneumatic conveying systems are employed to transport food from unloading points to designated storage areas. This method not only saves space but also minimizes dust pollution.
- Automated Warehouse Systems: By integrating automation technologies, pneumatic conveying can achieve precise positioning and efficient storage of food items, enhancing warehouse management efficiency.
3. Processing Stage of Pneumatic Conveying
- Raw Material Transportation: In food processing factories, pneumatic conveying is used to transport raw materials from unloading points to processing equipment. This method avoids issues related to material breakage that might occur with traditional conveyer belts.
- Finished Product Packaging: Processed food products (such as flour and rice) can be directly conveyed via pneumatic systems to packaging areas, enabling an automated packaging workflow.
Advantages of Pneumatic Conveying
- High Efficiency: Pneumatic conveying can quickly transport large quantities of materials, significantly improving logistics efficiency.
- Environmental Friendliness: Compared to traditional mechanical conveyer belts, pneumatic conveying reduces dust dispersion and material loss, making it more eco-friendly.
- Flexibility: Pneumatic conveying systems can be adjusted according to warehouse layouts, accommodating various site conditions.
Future Trends
- Intelligentization: By integrating IoT technologies and AI, future pneumatic conveying systems may enable remote monitoring and intelligent scheduling.
- Modular Design: Future pneumatic conveying devices will likely be more modular, facilitating installation and maintenance.
- Energy Optimization: Through improvements in fan efficiency and pipeline design, further reductions in energy consumption can be achieved.
Case Analysis of Using Negative Pressure Grain Collecting Machines in Grain Warehouses
Background
A large food processing enterprise has multiple grain warehouses. Due to aging infrastructure and poor management, some warehouses contain a significant amount of scattered grain. These scattered grains not only affect warehouse efficiency but also may lead to mold growth and spoilage. To improve the utilization rate of grain storage capacity and product quality, the company decided to introduce negative pressure grain collecting machines for regular collection.
Case Background
1. Warehouse Overview
The enterprise has two large warehouses, each with a capacity of approximately 50,000 tons. Each warehouse is equipped with two conveyors for transporting grain from unloading points to processing areas. However, due to long-term neglect or equipment malfunctions, scattered grains are present in some areas, leading to low utilization of storage capacity.
2. Problem Description
- Scattered grains occupy space and can contaminate the warehouse environment.
- Scattered grains may become moldy or spoiled, affecting product quality.
- Manual cleaning is costly and inefficient.
Solution
To address these issues, the company chose negative pressure grain collecting machines as a solution. Here are the details of the application:
1. Equipment Selection
Based on the actual conditions of the warehouses, two negative pressure grain collecting machines were selected, each with the following specifications:
- Vacuum Pump: A vacuum pump with a capacity of 100 liters per minute to generate sufficient negative pressure.
- Grain Collecting Pipeline: A pipeline of 5 meters in length and 200 mm in diameter for conveying air and grain particles to collection points.
- Collection Baskets: Equipped with filter nets to capture grains being drawn into the collection baskets.
2.Equipment Layout and Installation
The negative pressure grain collecting machines were installed in areas where scattered grains are present, near the two conveyors. The equipment was connected to the conveyors via pipelines and fixed on the warehouse walls to ensure uniform air and grain particle absorption.
3. Operation Flowchart
- Collection Process: When the vacuum pump operates, air is drawn into the pipeline along with grain particles. Due to negative pressure, the grains are collected into the collection baskets.
- Regular Collection: The machines operate daily for 8 hours to ensure timely removal of scattered grains in the warehouses.
Case Implementation Effects
1. Efficiency of Grain Collection Improved
The use of negative pressure grain collecting machines quickly collects scattered grains in the warehouses. Each conveyor line reduces scattered grains by approximately 50% per day.
2. Increased Warehouse Utilization Rate
After clearing scattered grains, the effective storage capacity of the warehouses increased. For example, the utilization rate improved from about 70% before clearing to over 90% afterward.
3. Environmental Improvement
The removal of scattered grains reduced environmental contamination and decreased the risk of mold growth, enhancing overall grain quality.
4. Cost Reduction
- Labor Costs: The company saved approximately 50% on manual cleaning costs.
- Maintenance Costs: The stable operation of the equipment reduced the need for long-term maintenance of conveyors and the warehouse environment.
Case Summary
1. Advantages Highlighted
Negative pressure grain collecting machines effectively collect scattered grains using the vacuum principle, addressing traditional methods' inefficiencies and high costs. Their energy-saving and environmentally friendly features make them an ideal choice for modern grain warehouse management.
2. Wider Applicability
This case is suitable for various types of warehouses, including those with two conveyors and areas where scattered grains are abundant.
3. Future Optimization Directions
- Further enhance the power of the vacuum pump to handle larger particle sizes or more moist grains.
- Research optimized designs for the collecting pipeline to improve efficiency and reduce maintenance frequency.
