Handling sensitive polymers presents severe combustible dust risks. These materials also bring dangerous static accumulation challenges to your plant floor. Standard material handling setups frequently fail when meeting strict safety compliance rules. Engineering and plant managers must objectively evaluate system safety long before spending capital. You need to move past basic equipment specifications to establish verifiable thresholds. This ensures plant operators and facilities remain protected from catastrophic events. We will outline a rigorous, evidence-based methodology here. You will learn how to conduct a thorough analysis when evaluating transport solutions for these volatile materials. Our guide provides clear steps to quantify hazards, apply safeguard hierarchies, and shortlist reliable integration partners. By applying these standards, you secure a robust operational environment.
Material Volatility: PE powder’s specific Minimum Ignition Energy (MIE) and static generation tendencies dictate the acceptable baseline for pneumatic conveying design.
Assessment Framework: A compliant safety acceptability analysis relies on verifiable metrics: grounding continuity, velocity control, and explosion isolation.
System Selection: Vacuum conveying under inert conditions often ranks highest in safety acceptability for sensitive polymer powders.
Vendor Accountability: Shortlist manufacturers based on demonstrated ATEX/NFPA compliance, FAT (Factory Acceptance Testing) protocols, and transparent risk assessment documentation.
You cannot engineer a safe system without understanding your material. The characteristics of Polyethylene powder dictate every subsequent engineering decision you make. We must first analyze its dust deflagration index, known as Kst. This value measures the normalized rate of pressure rise during an explosion. Polyethylene usually falls into the St 1 or St 2 dust explosion class. You must also measure its Pmax, which indicates the maximum explosion pressure generated in a closed vessel. These two metrics define the baseline forces your equipment must withstand or vent.
Friction poses the next major hazard. Moving dry particles rapidly through pipes naturally strips electrons. This action generates significant electrostatic charges. If your system breaches the Minimum Ignition Energy (MIE) threshold of the powder, a simple static spark can trigger an explosion. Fine polymer dusts often exhibit surprisingly low MIE values. They ignite easily under the right conditions. Therefore, controlling static accumulation remains a critical design priority.
We must identify high-risk zones within your system architecture. Vulnerabilities concentrate where powder mixes intimately with air. You should monitor the following areas closely:
Rotary Valves: These components act as both feeding mechanisms and potential ignition sources if mechanical failure causes friction.
Receiver Hoppers: Powder enters these vessels, creating suspended dust clouds during the filling phase.
Filter Housings: Dust collection points trap fine particles, establishing highly concentrated combustible environments.
Common Mistake: Many engineers assume bulk polymer pellets share the same safety profile as their powder forms. They do not. The increased surface area of powder exponentially increases its explosibility. Always test the exact particulate size you intend to transport.
A structured approach separates assumptions from facts. You must begin by mapping specific hazardous zones across your facility layout. This process establishes clear regulatory boundaries. Depending on your region, you will classify these areas under ATEX (Zone 20, 21, or 22) or North American standards (Class II, Division 1 or 2). Proper mapping ensures you only install certified equipment in high-risk footprints. Accurate classification forms the foundation of a reliable Risk assessment.
Once you map the zones, you must evaluate safeguard hierarchies. Safety engineering relies on two distinct pillars: prevention and mitigation. You should always prioritize prevention. Verifying grounding and bonding continuity prevents static sparks from forming. You can also implement nitrogen inerting. This technique displaces oxygen within the pipeline. You must pair inerting with continuous oxygen concentration monitoring to ensure it remains effective. If oxygen levels rise, the system must trigger an automatic shutdown.
When prevention fails, mitigation limits the damage. You must incorporate explosion venting into large vessels. Vents direct the blast pressure safely away from personnel. Alternatively, you can use active explosion suppression systems. These systems detect a pressure rise instantly and inject chemical suppressants. You also need rotary valve isolation capabilities. Isolation prevents flames from propagating backward through your feeding lines.
Finally, you need a mechanism for quantifying acceptability. You cannot rely on subjective feelings. Establish clear pass/fail criteria using European Chemical Transport Association (ECTA) best practices. Define internal safety tolerances mathematically. We call this measurable threshold your Safety acceptability. If a proposed design cannot mathematically prove it keeps Kst and MIE risks below your threshold, you must reject it.

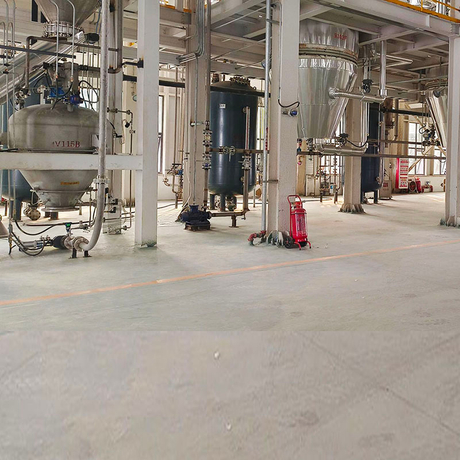

System architecture drastically impacts inherent safety. You must choose between different transport phases and pressure mechanics. The first major decision involves selecting between dilute phase and dense phase transport.
Dilute phase systems use high air velocity to suspend particles. This high speed causes particle attrition. The powder breaks down, generating even finer dust. High velocity also maximizes particle-to-pipe friction, causing rapid static buildup. Conversely, dense phase systems push material at much lower velocities. The powder moves in slugs or waves. Lower velocities reduce attrition, minimize dust generation, and significantly lower static accumulation. Therefore, dense phase setups generally offer higher safety margins for sensitive polymers.
You must also evaluate positive pressure versus vacuum setups. Positive pressure systems blow material from the source to the destination. If a pipe leaks, it blows combustible dust directly into your facility atmosphere. This creates an immediate external hazard. Vacuum systems pull material to the destination. If a vacuum line leaks, it pulls ambient air inward. It keeps the dust contained. Vacuum systems inherently reduce fugitive dust emissions.
Consider the table below for a structured comparison of these conveying phases:
System Attribute | Dilute Phase | Dense Phase |
|---|---|---|
Conveying Velocity | High (typically >15 m/s) | Low (typically <5 m/s) |
Dust Generation Risk | High (frequent particle attrition) | Low (gentle handling) |
Static Accumulation | Rapid and severe | Minimal to moderate |
Inherent Safety Margin | Lower | Higher |
For highly sensitive powders, you must evaluate inert conditions. Closed-loop nitrogen systems represent the gold standard for safety. They recycle nitrogen gas to push the powder, keeping oxygen levels below the Limiting Oxygen Concentration (LOC). Assess both the technical feasibility and operational demands of these closed-loop architectures when planning your Pneumatic conveying layout.
Regulatory frameworks exist to keep your plant operational and your people alive. You must align your system design with recognized industry standards. In North America, refer strictly to NFPA 652 and NFPA 654. These documents outline the fundamentals of combustible dust management. In Europe, you must follow the ATEX Directives, specifically EN 1127-1, which governs explosion prevention and protection. Adhering to these frameworks is not optional; it is a legal imperative.
Do not accept verbal assurances from system integrators. You must demand hard certification requirements. Request independent certifier reports for the entire system design. You also need component-level ATEX or Class/Div certificates for individual parts. Every sensor, motor, and rotary valve inside the hazardous zone requires documented proof of compliance.
Best Practice: Build a compliance dossier before installation begins. Compile all certificates, manual references, and test results into a single digital repository. This saves immense time during external safety audits.
Testing and validation form the final compliance benchmark. Never buy a system based on theoretical calculations alone. You must conduct powder characterization testing at an independent laboratory. Discover your exact MIE, Kst, Pmax, and LOC. Following lab tests, mandate pilot-scale trials. Send a bulk sample of your material to the vendor's testing facility. Observe how the material behaves under actual conveying conditions. Pilot trials reveal hidden attrition and flow issues before you finalize procurement.
Installing new equipment into an older facility introduces distinct integration risks. You must assess how new systems interface with legacy chemical plant infrastructure. A new, highly secure transport line might feed into an outdated, poorly vented silo. This negates your safety efforts. You must evaluate the entire process stream. Ensure your new installation does not compromise existing safety zones or overload legacy electrical grounding networks.
Maintenance directly impacts long-term operational safety. A system is only safe if you can clean it easily. Evaluate the design for cleanability. Look for tool-less access ports and smooth internal welds. Filter maintenance accessibility is crucial. If operators struggle to reach filter housings, they will delay maintenance. Dirty filters increase system pressure and elevate explosion risks. Furthermore, insist on automated safety interlocks. If a grounding clamp disconnects, the system must halt immediately. Human reaction time is too slow for explosion prevention.
When selecting a vendor, use strict evaluation criteria. Do not compromise on these points:
Refuse "One-Size-Fits-All" Promises: Reject vendors who quote off-the-shelf systems without asking for your specific material test data.
Require Data-Driven Reports: Demand a site-specific safety report prior to finalizing the engineering design. This report must map directly to your hazard classification.
Demand Post-Installation Auditing: Ensure the vendor commits to verifying the installation on-site. They must test all interlocks and grounding connections.
Mandate Operator Training: The vendor must train your staff on specific hazard recognition and emergency shutdown procedures.
Achieving true safety in polymer handling requires a major shift in perspective. You must move away from reactive hazard mitigation. Instead, embrace proactive, verifiable assessment techniques during the early engineering phase. Relying on strict metrics like Kst, MIE, and velocity control ensures your equipment matches the chemical reality of your material. Proper zoning and safeguard hierarchies prevent catastrophic events before they initiate.
Take immediate action on your upcoming project. First, initiate a comprehensive powder characterization test with a certified third-party lab. Gather your exact material data. Next, demand a compliance-mapped engineering proposal from your shortlisted partners. Force them to prove their design mathematically. By demanding evidence-based engineering, you protect your infrastructure and your team.
A: The MIE varies significantly based on particle size and morphology. Finer particles typically exhibit much lower MIE values, often dropping below 10 millijoules. Because it ignites so easily, you must implement strict grounding and bonding protocols. This prevents any static discharge from reaching the powder stream.
A: No, vacuum conveying does not eliminate explosion risks. While it inherently reduces fugitive dust escape by pulling air inward during a leak, internal hazards remain. You still need proper grounding, ATEX-certified components, and adequate explosion isolation devices to protect against internal deflagrations.
A: You should update the analysis whenever you modify the system. Reassess it if you change powder suppliers, as material properties might differ. Furthermore, you must conduct regular reviews during standard compliance audit cycles. Following NFPA guidelines, we recommend a complete reassessment every three to five years.
