Recovering high-value powder from rejected capsules presents a major operational challenge. Pharmaceutical and nutraceutical facilities face immense pressure daily. They must reclaim active pharmaceutical ingredients (APIs) efficiently. Facilities also must ensure absolute dust containment to prevent cross-contamination.
Traditional size reduction transfer methods consistently fall short. Open-air bins and mechanical augers often fail to meet stringent occupational exposure limits (OEL). These outdated processes frequently result in unacceptable yield loss. Safety risks multiply when operators handle exposed, volatile particulates.
Closed-loop engineered systems provide a definitive resolution to these material handling vulnerabilities. Implementing Circulating Pneumatic Conveying Devices fundamentally transforms powder recovery. You will learn how these systems integrate seamlessly alongside inline capsule crushers. We will explore essential evaluation criteria, mitigation strategies for adoption risks, and concrete steps to ensure maximum process efficiency.
Integrating circulating pneumatic conveying devices with capsule crushers maximizes active pharmaceutical ingredient (API) recovery while maintaining strict dust containment.
Closed-loop systems enable the use of inert gases (like nitrogen), significantly reducing explosion risks associated with combustible powders during the crushing phase.
Evaluating these systems requires balancing throughput requirements with filter cleanability (WIP/CIP compatibility) and facility footprint constraints.
Successful implementation demands careful assessment of bulk density, powder cohesiveness, and the exact physical interface between the crusher outlet and the conveying inlet.
Capsule rejection happens in every pharmaceutical packaging line. Weight variations, empty shells, or defective joins force quality control systems to discard product. However, the API inside these rejected capsules retains enormous financial value. Businesses need reliable methods to crush the shells and recover the pure powder. This recovery bottleneck creates immediate operational hazards. Crushing operations inherently generate volatile, fine particulates. Once liberated from the capsule shell, API dust becomes highly mobile.
Traditional transfer mechanisms simply cannot handle this mobility safely. Gravity-fed chutes routinely leak fine dust into the surrounding environment. Mechanical augers rely on friction to move material. This grinding action damages delicate API particles and leaves residual powder trapped in crevices. Open-air catch bins expose operators directly to hazardous compounds. Such exposure leads to severe health risks and drives up routine housekeeping costs. Product loss remains high because airborne dust never reaches the final collection vessel.

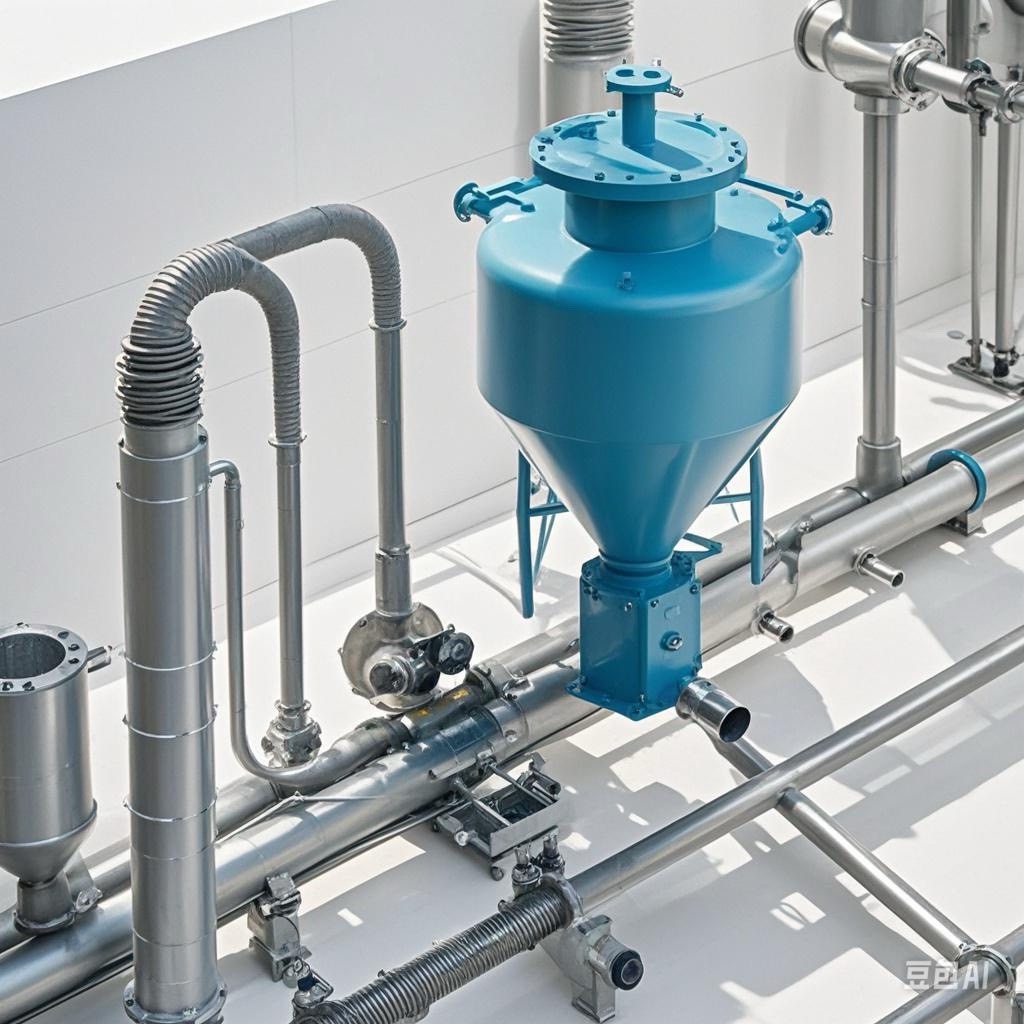

A closed-loop infrastructure offers a structural advantage. It eliminates environmental exposure entirely. Circulating Pneumatic Conveying Devices recirculate the carrier gas continuously within a sealed piping network. This containment prevents ambient air from entering the product stream. Keeping ambient air out prevents unwanted moisture introduction. Hygroscopic materials degrade rapidly upon absorbing ambient humidity. Furthermore, closed-loop designs drastically reduce exhaust filtration burdens. Standard systems constantly push process air through exhaust filters. Circulating systems reuse the same air volume, protecting filter longevity and preventing hazardous emissions.
Pairing a capsule crusher with a conveying network requires precise mechanical synchronization. The system architecture depends on a seamless physical handshake. Material drops from the crusher outlet directly into the pneumatic pickup point. This transition zone typically utilizes rotary valves or specialized sanitary adapters. These components maintain a continuous pressure boundary. They allow bulk powder to enter the gas stream without disrupting the delicate pressure equilibrium.
Engineers generally choose between negative and positive pressure modalities for material transport. Each method presents distinct operational characteristics.
Vacuum systems utilize negative pressure to draw material through the pipeline. They suck the crushed powder away from the sizing equipment. This modality proves ideal for hazardous pharmaceutical applications. If a pipe seal degrades or a clamp loosens, ambient air pulls inward. Outward dust leakage becomes physically impossible under active vacuum conditions. You protect operators inherently through this design.
Positive pressure systems push material using compressed gas. Facilities occasionally use positive pressure for exceptionally long transport distances. However, these systems carry higher contamination risks. Any breach in the pipeline immediately forces toxic API dust out into the facility environment. Pharmaceutical processors generally avoid positive pressure for high-potency drug recovery.
Combustible dust explosions pose a catastrophic risk during powder milling and crushing. Regulatory bodies tightly control these environments. NFPA and ATEX directives mandate strict mitigation strategies. Many pharmaceutical powders feature dangerously low minimum ignition energies.
Circulating networks excel at mitigating these explosion hazards. They allow facilities to use inert gases continuously. Operators often flood the sealed pipeline using pure nitrogen. This displaces oxygen and drops the internal atmosphere below the Limiting Oxygen Concentration (LOC). Combustion cannot occur without sufficient oxygen. Recirculating this nitrogen lowers operational costs dramatically. Single-pass pneumatic systems vent expensive inert gases into the atmosphere after one use. Circulating Pneumatic Conveying Devices capture the nitrogen, filter the dust, and pump the inert gas back to the starting point.
Selecting the right conveying infrastructure demands rigorous technical evaluation. You must align equipment specifications directly against specific operational outcomes. Minor design flaws translate directly into batch contamination or compliance failures.
Sanitary design dictates the overall safety of the transferred batch. Equipment must utilize 316L stainless steel for all product contact surfaces. Welds must feature crevice-free, polished finishes to prevent powder entrapment. You should verify all elastomers meet FDA and GMP compliance standards. These rigorous design choices directly translate to reduced batch-to-batch cross-contamination. Filter performance acts as the secondary safety barrier. Systems must integrate HEPA or ULPA filtration at critical exhaust junctions. High-performance filtration translates directly to meeting strict Occupational Exposure Limits (OELs) during routine operation.
System Feature | Technical Specification | Operational Outcome |
|---|---|---|
Sanitary Construction | 316L Stainless Steel, Ra < 0.4 µm finish | Prevents API retention; enables rapid validation. |
Elastomer Quality | FDA/GMP-compliant PTFE or EPDM | Eliminates chemical leaching and seal degradation. |
Advanced Filtration | Integrated HEPA/ULPA filters | Maintains OEL compliance for high-potency compounds. |
Gas Management | Closed-loop nitrogen recirculation | Achieves ATEX/NFPA compliance safely and economically. |
Cleanability fundamentally impacts production turnaround times. Assess how easily operators can disassemble the conveying lines. Receiver vessels must support quick inspection. Many modern systems support Wash-In-Place (WIP) or Clean-In-Place (CIP) protocols. WIP systems utilize integrated spray balls to wet down hazardous dust before operators open the equipment. This wetting process protects workers from airborne exposure during maintenance.
Scalability ensures long-term operational resilience. Capsule crushers rarely produce a perfectly uniform feed rate. Surges happen frequently when rejecting a large, failed batch. The pneumatic system must handle variable feed rates seamlessly. It must accelerate sudden powder influxes without plugging the pipeline or tripping safety sensors.
Even premium engineering solutions carry adoption risks. Integrating complex pneumatic machinery requires foresight. Project teams must acknowledge potential failure modes early. Identifying these risks allows you to engineer targeted mitigation strategies before installation.
Overcoming Filter Blinding: Fine API powders easily blind standard filters. A blinded filter chokes the carrier gas flow, halting production entirely. Mitigation requires specifying active reverse-pulse cleaning mechanisms. These mechanisms blast brief bursts of compressed air backward through the filter media. You must also calculate the correct air-to-cloth ratio to prevent premature media saturation.
Preventing Material Degradation: Crushed API remains highly sensitive. Over-conveying velocity causes unwanted friction inside the piping. Friction generates heat. This heat can melt or degrade fragile compounds. You mitigate this by carefully selecting the conveying phase. Dense phase conveying moves material slowly in concentrated slugs. Dilute phase moves material quickly suspended in gas. Match the phase choice to material fragility.
Navigating Footprint Constraints: Manufacturing floors rarely feature excess space. Retrofitting conveying receivers above existing packaging lines poses spatial challenges. Headroom often restricts equipment placement. You mitigate this by selecting low-profile receiver vessels. Sometimes, installing the blower packages in adjacent mechanical rooms frees up critical cleanroom floor space.
Optimizing Energy Consumption: Continuous blower operation consumes significant electrical power. Transparently evaluating these energy costs prevents budget overruns. You optimize usage by incorporating Variable Frequency Drives (VFDs). VFDs adjust the blower motor speed dynamically. They supply only the exact pneumatic power required for the current powder volume.
Addressing these realities ensures stable daily operations. You eliminate surprise maintenance intervals. Proper mitigation transforms a complex mechanical integration into a reliable production asset.
Purchasing capital equipment requires a methodical vendor assessment. You must separate marketing claims from proven engineering capabilities. Establishing clear, measurable success criteria is the vital first step. Define exactly what a successful pilot program looks like for your facility.
Success criteria must include rigid performance metrics. Demand greater than 98% powder recovery from the capsule crusher. Stipulate zero detectable fugitive dust around the physical interfaces. The equipment must pass rigorous Factory Acceptance Testing (FAT) specifically focused on cleanability and surface finishing. Holding vendors to these exact numbers prevents ambiguous project outcomes.
Vendor evidence validation separates capable partners from inexperienced suppliers. Always demand empirical testing before signing purchase orders. Vendors should provide comprehensive test lab data. They must use your specific capsule and powder mixture during these trials. Generalized case studies hold little value. Cohesive, sticky powders behave differently than free-flowing granules. Hard evidence from physical trials guarantees system reliability.
Integration capability serves as the final vendor differentiator. Prioritize suppliers who demonstrate deep expertise across multiple disciplines. They must understand pneumatic transfer intimately. They also must understand size reduction integration. A perfect conveying system fails if it cannot interface mechanically with the capsule crusher valve. A unified engineering approach prevents finger-pointing during final commissioning.
Recommend initiating a material flow test immediately. Conduct an on-site system assessment to baseline current material loss. Calculating the exact volume of wasted API allows you to project a highly accurate return on investment. Taking this proactive step solidifies the business case for facility upgrades.
Pairing a capsule crusher with an advanced material transfer network drives processing excellence. It transcends basic material handling. Implementing this technology serves as a critical compliance, safety, and yield-recovery strategy. You reclaim valuable product while completely isolating operators from hazardous exposure.
However, maintain a healthy skepticism during procurement. No automated system is truly plug-and-play. Exact material characterization must dictate your engineering design. Facility constraints, headroom limits, and powder cohesiveness will shape the final equipment layout. Tailored engineering always outperforms off-the-shelf compromises.
Take proactive steps to secure your production environment. Schedule a detailed technical consultation with an integration specialist. Request a custom material transfer assessment to identify your current vulnerabilities. Upgrading your powder recovery process ensures continuous compliance and protects your most valuable pharmaceutical assets.
A: Standard systems pull ambient air to move material and vent it outdoors after filtration. Circulating systems utilize a closed-loop architecture. They reuse the same carrier gas continuously. This prevents environmental contamination, blocks external moisture, and saves money when using expensive inert gases.
A: Yes, but they require highly specific design modifications. Standard pipes will clog quickly. Engineers must incorporate polished internal finishes and fluidization pads. They also use specialized mechanical discharge valves to prevent cohesive powders from bridging or rat-holing inside the receiver vessels.
A: They comply by replacing atmospheric air with an inert gas, typically nitrogen. The closed-loop design traps the nitrogen inside. This keeps internal oxygen levels well below the Limiting Oxygen Concentration (LOC). Combined with strict mechanical grounding and bonding, this prevents sparks and spontaneous combustion.
A: Payback periods typically range from 12 to 24 months. The calculation is driven entirely by the monetary value of the recovered API. Further savings accumulate through significant reductions in manual housekeeping labor and the complete avoidance of severe regulatory compliance fines.
