Manual powder handling and mechanical transfer present inherent risks in Oral Solid Dosage (OSD) manufacturing. Operator exposure to potent active ingredients and the constant threat of cross-contamination severely compromise workplace safety. Batch inconsistency frequently occurs when utilizing outdated gravity-fed methods. These legacy approaches create significant compliance challenges in modern pharmaceutical facilities.
Transitioning to a closed-system approach is essential for modern operations. Vacuum Conveying of Powders stands as the industry-standard methodology for compliant material transfer between blending, granulation, and compression stages. It effectively eliminates fugitive dust and protects delicate pharmaceutical formulations from environmental exposure. This technology provides a reliable, repeatable method for moving critical materials.
This article provides process engineers and facility managers a comprehensive technical evaluation framework. We will explore system sizing, containment strategies, and crucial integration steps. You will learn how to assess, specify, and implement these conveying systems safely. Our guidelines ensure you achieve integration without disrupting your existing validated processes.
Containment & Compliance: Vacuum conveying intrinsically supports high Occupational Exposure Band (OEB) requirements by operating under negative pressure, minimizing fugitive dust.
Quality Preservation: Properly engineered systems prevent powder segregation and particle attrition during transit to tablet presses and capsule fillers.
System Sizing: Pump selection, filter area, and conveying phase (dense vs. dilute) must be precisely matched to the specific bulk density and flow characteristics of the API and excipients.
Implementation Focus: Successful integration requires rigorous material testing prior to purchase and evaluating vendors based on ATEX/NFPA compliance and hygienic design.
Managing airborne exposure remains a top priority in OSD manufacturing facilities. Gravity-fed or mechanical conveyors often leak fine dust into the surrounding workspace. They expose operators directly to highly potent active pharmaceutical ingredients (APIs). Negative pressure systems change this safety dynamic entirely. By drawing material through enclosed piping via suction, they keep hazardous dust safely contained inside the process equipment. This approach directly supports strict Occupational Exposure Limit (OEL) targets. You can confidently handle OEB 4 and OEB 5 compounds knowing the enclosed process protects your frontline team.
Batch-manual loading significantly slows down production timelines. Operators spend excessive time manually scooping powder and lifting heavy drums above compression machines. Shifting to automated feeding reduces these cumbersome cycle times immediately. We see substantial throughput gains when facilities implement continuous or semi-continuous material transfer protocols. Automated level sensors trigger the suction cycle only when downstream equipment needs material. This demand-based flow eliminates production bottlenecks, prevents hopper starvation, and maximizes overall equipment utilization.
High-value pharmaceutical APIs demand strict inventory control. Spilled powder directly harms the operational bottom line. Closed-loop vacuum systems prevent this expensive material loss effectively. They pull every usable ounce from the source IBC directly into the destination vessel. This high-efficiency transfer optimizes the cost-per-batch metrics significantly. Your facility achieves higher product yields while simultaneously cutting toxic waste disposal costs. Preventing a mere one percent of material loss per batch justifies the system upgrade rapidly.

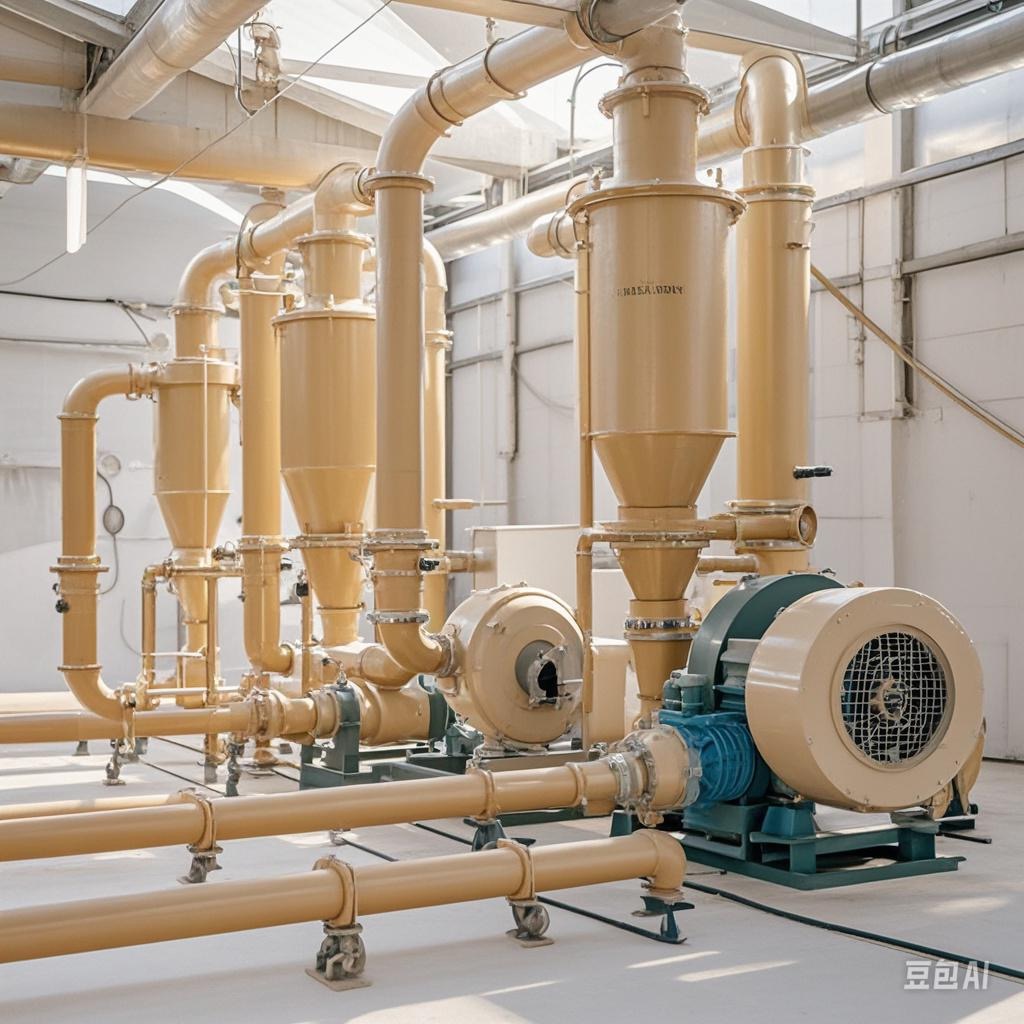

The heart of any transfer system is its vacuum generation source. You must evaluate pneumatic systems against mechanical pumps carefully. Pneumatic venturi pumps use facility compressed air to generate deep suction. They are highly compact, easy to sanitize, and contain zero moving parts. However, they demand substantial compressed air volume. Mechanical pumps deliver deep, consistent vacuum levels ideal for heavy or long-distance powder transfers. We must consider noise limits and maintenance capabilities when choosing between them.
Feature | Pneumatic (Venturi) Pumps | Mechanical Pumps |
|---|---|---|
Power Source | Facility compressed air | Electrical power |
Maintenance | Minimal (no moving parts) | Moderate (oil changes, seal replacements) |
Footprint | Very compact, mounts on receiver | Large, requires remote installation |
Ideal Application | Short distances, frequent product changeovers | Long distances, continuous heavy-duty transfer |
Filters keep fine pharmaceutical powders from reaching the pump or escaping into the cleanroom. Assess your HEPA or PTFE filter requirements based on the specific particle size of your API. Reverse-pulse cleaning provides a vital maintenance function here. It shoots quick bursts of compressed air back through the filter media to clear accumulated dust during operation. Multi-product facilities require rapid equipment changeovers. Tool-less, modular filter housings allow operators to swap components quickly. This flexibility prevents dangerous cross-contamination between different drug batches.
Regulatory compliance dictates stringent material selection. We recommend using a dedicated hygienic checklist to verify cGMP standards. Your equipment must feature:
FDA-approved contact materials across all touchpoints.
316L stainless steel construction for all metal parts.
FDA-compliant elastomers (silicone, EPDM) for seals and gaskets.
Strict surface finish requirements, typically maintaining Ra values below 0.8 µm.
Handling combustible pharmaceutical dusts adds another layer of operational complexity. ATEX and NFPA compliance is absolutely mandatory. Grounding, electrical bonding, and conductive filter media prevent dangerous static discharges inside the tubing.
Blend un-mixing, known as segregation, poses a critical risk during pneumatic transfer. Moving a perfectly mixed blend to a tablet press can undo the granulation team's hard work instantly. If particles separate by size or density in transit, you risk out-of-specification (OOS) content uniformity. Your final solid dosage forms might fail critical quality release testing. We must engineer the transfer parameters to lock the delicate blend in place during its journey.
The velocity of material movement dictates the conveying phase. We use high-velocity dilute phase conveying for robust, single-ingredient transfers. Here, individual particles float freely in the air stream. Conversely, low-velocity dense phase conveying moves powder in slow, solid plugs. You should always specify dense phase parameters for fragile, highly blended, or abrasive powders. This gentle method significantly reduces particle attrition and maintains critical blend uniformity.
Summary Chart: Dense vs. Dilute Phase Conveying
Conveying Phase | Velocity | Material Behavior | Best Suited For |
|---|---|---|---|
Dilute Phase | High (>15 m/s) | Suspended in air stream | Raw excipients, robust single ingredients |
Dense Phase | Low (1 to 5 m/s) | Solid slugs or uniform waves | Mixed blends, fragile APIs, abrasive powders |

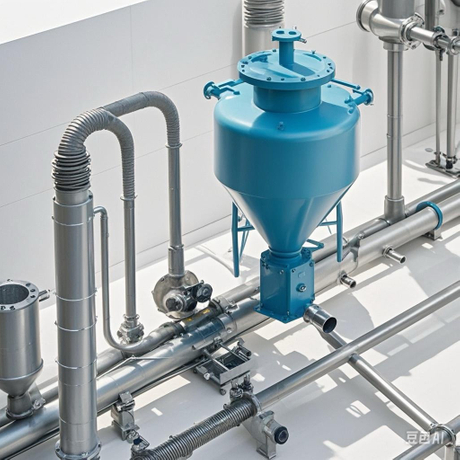

The receiving vessel's discharge mechanism directly impacts material mass flow. Poorly designed discharge valves cause rat-holing or bridging. In these failure scenarios, powder sticks to the receiver walls or blocks the exit entirely. Evaluate standard butterfly valves against specialized active cone valves. Cone valves promote true mass flow by gently lifting and breaking up compacted powder upon discharge. This mechanical action ensures a consistent, uniform powder feed directly into the tablet press hopper.
Physical space limitations often restrict installation options in older facilities. Tablet presses and capsule fillers usually operate in tight, controlled suites. Headroom above these production machines is notoriously limited. You must map the exact footprint and ceiling height precisely before specifying any equipment. Low-profile receivers or offset cyclone separators help engineers bypass strict headroom constraints. Always account for intermediate bulk container (IBC) lifting heights and post-hoist swing radiuses during the initial layout phase.
Every product changeover demands rigorous cleaning protocols. Compare offline manual cleaning against automated Wash-in-Place (WIP) modules carefully. Manual dismantling allows operators to visually inspect all components thoroughly. It requires less upfront capital but drastically increases changeover downtime. Integrating Clean-in-Place (CIP) or WIP systems automates the washing cycle. Retractable wetting spray balls and automated heated drying cycles reduce manual labor. However, validating these complex automated cleaning processes takes considerable time and dedicated engineering effort.
Standalone equipment disrupts smooth operational flow. You must integrate the vacuum system's control logic with your existing facility architecture. Seamless synchronization requires careful planning. Follow these steps for integration:
Install accurate capacitance or optical level sensors in the destination hopper.
Map PLC communication protocols between the vacuum panel and the tablet press.
Establish timer overrides to prevent system dry-running.
Configure safety interlocks to halt suction if downstream equipment faults.
Demand-based feeding relies entirely on accurate sensor data. When the compression machine runs low, the system automatically calls for more powder. This smart logic prevents dangerous overfilling and complete hopper starvation.
Never rely on theoretical flow calculations alone. Physical testing is absolutely necessary before final CapEx approval. You must run your actual powder blends, or validated placebos, at the vendor's dedicated test facility. Parameters like bulk density, moisture content, angle of repose, and particle shape heavily influence flow behavior. Real-world testing uncovers hidden bridging or sticking issues early. It ensures the proposed pump and filter combination can handle your specific formulation safely.
Regulatory validation hinges on highly accurate, traceable documentation. Evaluate the equipment vendor's capability to execute comprehensive Factory Acceptance Testing (FAT). The physical equipment must meet all user requirement specifications before shipping. Following delivery, rigorous Site Acceptance Testing (SAT) confirms proper installation in your cleanroom. Ensure the vendor supplies complete Installation Qualification (IQ) and Operational Qualification (OQ) execution protocols. These certified documents form the structural backbone of your cGMP compliance strategy.
Successful application of Vacuum Conveying of Powders in solid dosage manufacturing requires careful balance. You must merge high-level containment protocols, reliable throughput rates, and strict product quality preservation. Implementing these precise systems correctly minimizes blend segregation and rigorously protects operator health. Replacing manual scooping methods elevates your entire production standard.
Take immediate action to prepare your facility for this upgrade. Follow these specific next steps:
Compile your material safety data sheets (MSDS) to determine OEB targets.
Gather accurate tapped and untapped bulk density data for your blends.
Measure exact facility layout dimensions, highlighting vertical suite clearances.
Initiate pre-engineering discussions with qualified vendors using this compiled data.
Qualified engineers will help tailor a dedicated system designed specifically for your unique OSD workflow.
A: It can, if transfer velocities are too high. High-speed transfer fluidizes the blend, allowing finer particles to separate from larger granules. This is easily mitigated by using dense-phase conveying. Slowing the transfer speed moves the powder in unified slugs, preserving the precise blend. Pairing this strategy with a proper receiver discharge design prevents further un-mixing during hopper delivery.
A: Cohesive or sticky pharmaceutical powders often resist pneumatic transfer. This challenge is mitigated through the integration of fluidization pads and mechanical agitators. These specific devices inject dry air or vibrate the material physically to break up clumps. Specialized discharge valves at the pickup and discharge points also prevent rat-holing, ensuring continuous mass flow.
A: Yes, provided the system is explicitly designed and certified for ATEX/NFPA compliance. Handling combustible dust requires strict preventative measures. The system must utilize comprehensive grounding and bonding to prevent static build-up. Conductive filters dissipate electrical charges safely. For highly explosive materials, inert gas purging replaces oxygen in the conveying line to eliminate ignition risks.
A: Changeover times vary heavily by equipment design. Tool-less, modular systems feature quick-release hygienic clamps. Operators can completely strip and clean these units offline in under 30 minutes. Conversely, automated WIP systems take longer to fully validate and run their washing cycles. However, WIP drastically reduces manual labor and operator exposure during the cleaning process.
