Compared to mechanical mixing, pneumatic mixing in powder mixers offers several significant advantages:
1. Higher Mixing Uniformity

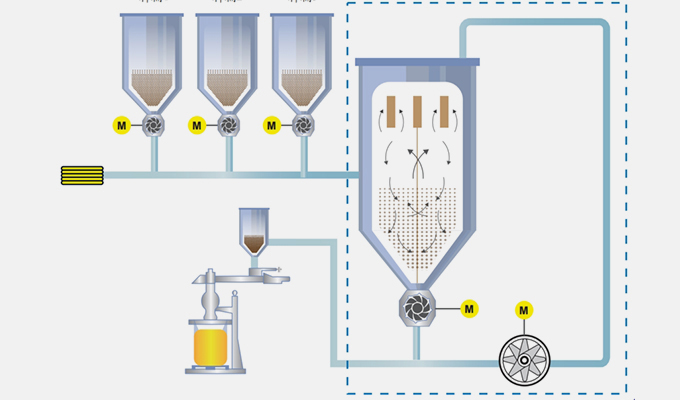

Pneumatic mixing suspends powder materials using high-speed airflows and agitates them in multiple directions, resulting in more uniform mixing. This method is particularly effective for materials with large density differences.
In contrast, mechanical mixing relies on the rotation of agitator blades, which can lead to dead zones or localized non-uniform mixing, especially when handling lightweight or easily agglomerated powders.
2. Reduced Material Damage
Pneumatic mixing is a non-contact method, minimizing the impact on the shape and structure of powder particles. It is ideal for brittle, easily worn materials or those requiring strict particle shape preservation.
Mechanical mixing, on the other hand, involves direct contact with agitator blades, which can cause particle breakage or wear, potentially compromising material quality.
3. No Mechanical Wear and Low Maintenance Costs
Pneumatic mixing systems have no mechanical moving parts, eliminating issues such as agitator blade wear. This results in lower maintenance costs and longer equipment lifespans.
In mechanical mixing, components like agitator blades and bearings are subject to wear during prolonged operation, requiring regular replacement and maintenance.
4. Ideal for High-Cleanliness Applications
Pneumatic mixing systems are well-sealed, reducing the risk of contamination during the mixing process. This makes them particularly suitable for industries with stringent cleanliness requirements, such as food and pharmaceuticals.
In mechanical mixing, friction and contact between components can introduce trace amounts of metal particles or other contaminants into the materials.
5. Relatively Low Energy Consumption
With optimized airflow design, pneumatic mixing achieves efficient results with relatively low energy consumption, especially when handling large batches of materials.
Mechanical mixing, however, requires overcoming the resistance of agitator blades, leading to higher energy consumption. This energy demand increases further when dealing with high-viscosity or dense materials.
6. Strong Adaptability for Various Materials
Pneumatic mixing is highly adaptable, capable of handling lightweight, fine powders, easily agglomerated, or highly viscous materials. It is also less prone to blockages or caking.
Mechanical mixing, by contrast, may struggle with highly viscous or easily agglomerated materials, often resulting in insufficient mixing or equipment jamming.
7. Ease of Cleaning
The simple internal structure of pneumatic mixing systems makes them easy to clean, which is particularly advantageous in production scenarios requiring frequent material changes.
Mechanical mixing systems, with their agitator blades and bearings, are more challenging to clean and often retain material residues.
8. Capability for Continuous Operation
Pneumatic mixing can be seamlessly integrated with other pneumatic conveying equipment, enabling continuous mixing and transportation of materials. This makes it well-suited for modern automated production lines.
Mechanical mixing, in contrast, is typically operated intermittently and has limited capabilities for continuous operation.
Pneumatic mixing offers numerous advantages, including high mixing uniformity, minimal material damage, low maintenance costs, and strong adaptability. It is particularly well-suited for applications involving high cleanliness requirements, brittle materials, or easily agglomerated powders. While mechanical mixing may have a simpler structure and lower initial investment, it faces limitations in terms of mixing performance, energy efficiency, maintenance, and cleaning. As a result, pneumatic mixing is better suited for modern, high-demand powder mixing applications.
 |  |
