Pneumatic conveying has emerged as a pivotal technology in the efficient transportation of bulk materials across various industries. This method utilizes air flow to move powders, granules, and other dry bulk materials through enclosed pipelines, offering a clean and efficient means of material handling. The significance of pneumatic conveying lies not only in its efficiency but also in its ability to minimize contamination and reduce material degradation during transit. This article delves into the intricate mechanics of pneumatic conveying systems, exploring their design principles, operational parameters, and the myriad of applications they serve in modern industry.
At its core, pneumatic conveying relies on the flow of air or another gas to propel bulk materials through a pipeline from one point to another. The process is dependent on the principles of fluid dynamics and particulate mechanics. The velocity of the conveying gas, the characteristics of the material being conveyed, and the system's pipeline geometry are critical factors influencing the efficiency and effectiveness of the system.
Pneumatic conveying systems are generally categorized into two main types: dilute phase and dense phase conveying.
Dilute Phase Conveying: This method involves suspending the material in the conveying air stream at high velocities. It's suitable for a wide range of materials and is often used when material degradation is not a primary concern.
Dense Phase Conveying: In contrast, dense phase conveying moves materials at lower velocities and higher pressures, allowing for the gentle handling of abrasive or fragile materials. This method reduces wear on the system and minimizes material degradation.

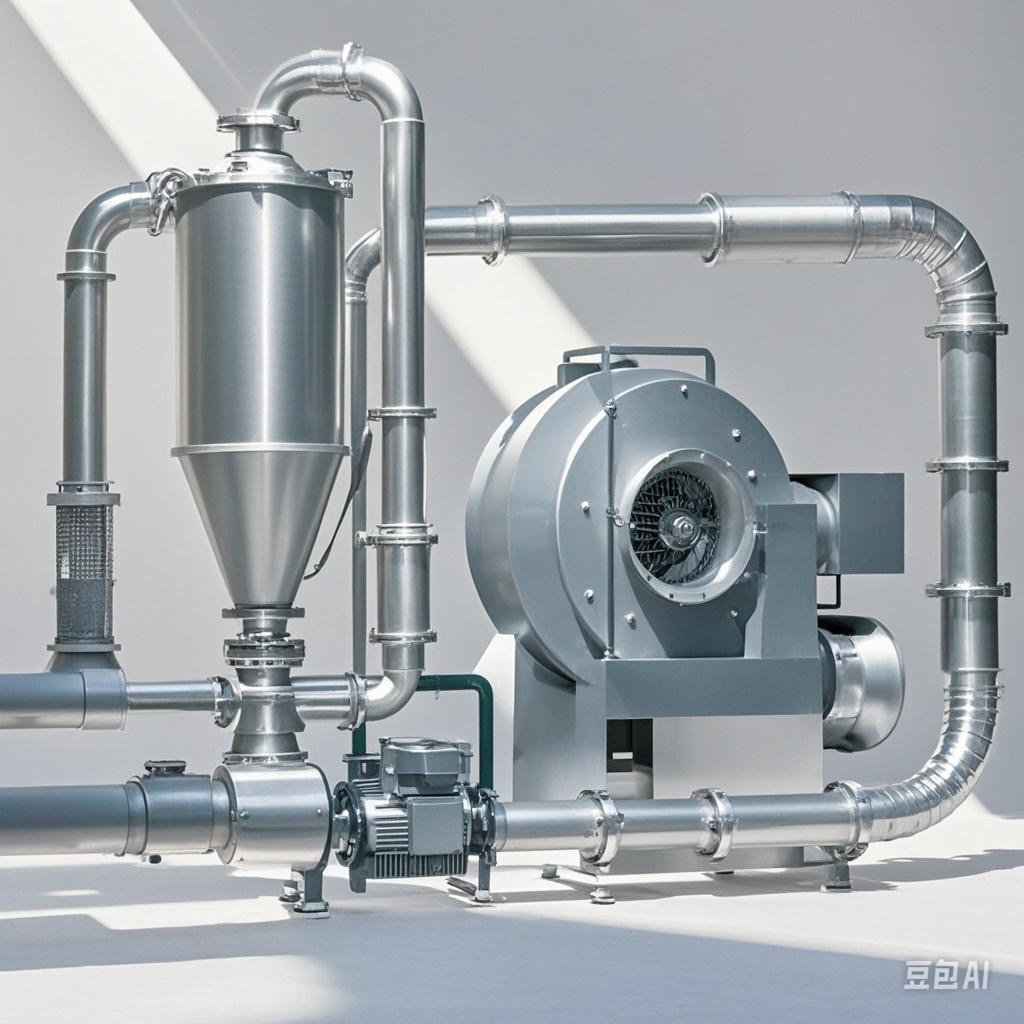

A typical pneumatic conveying system comprises several key components:
Feed System: This includes devices like rotary valves or screw feeders that introduce the material into the conveying line. The design of the feed system is crucial to ensure a consistent and controlled material flow.
Conveying Line: The pipeline through which the material is transported. The material of the pipeline must be selected based on the abrasiveness and corrosiveness of the conveyed material.
Air Movers: Equipment such as blowers, compressors, or fans that provide the necessary air flow and pressure for conveying.
Separator or Receiver: Devices like cyclones or filters that separate the material from the air stream at the destination point.
Designing an efficient pneumatic conveying system requires a thorough understanding of the material properties and system parameters. Factors such as particle size, bulk density, moisture content, and abrasiveness must be considered. Additionally, the desired conveying rate, distance, and system layout play significant roles in design optimization.
Materials can behave differently when conveyed pneumatically. Cohesive materials may require special handling to prevent blockage, while abrasive materials can cause significant wear on equipment. Understanding the flow characteristics, like the angle of repose and flow function, is essential for system design.
The configuration of the pipeline, including its length, diameter, and the number of bends, affects the pressure drop and power requirements of the system. Minimizing pipeline complexity can enhance efficiency and reduce operational costs.
Pneumatic conveying systems are utilized in a vast array of industries due to their versatility and efficiency.
In the chemical sector, the handling of powders and granules is commonplace. Pneumatic systems ensure the safe and efficient movement of chemical powders, minimizing exposure and contamination risks. They are integral in processes involving catalysts, resins, and various chemical additives.
The food industry benefits from pneumatic conveying by maintaining the hygiene and integrity of food products. From transporting grains and flours to handling sugar and spices, these systems prevent contamination and adhere to stringent sanitary standards.
Precision and cleanliness are paramount in pharmaceuticals. Pneumatic conveying facilitates the transfer of ingredients and finished products while maintaining purity and preventing cross-contamination. The gentle handling ensures the active ingredients are not degraded during the process.
In mining, pneumatic systems are employed to transport minerals like coal, limestone, and ores. The systems are designed to handle abrasive materials and are often used in conjunction with dust collection systems to improve environmental compliance.
Pneumatic conveying offers several advantages over mechanical conveying methods.
The pipeline can be routed around existing equipment and obstacles, allowing for greater flexibility in plant design. Vertical and horizontal conveying is possible without the need for multiple transfer points.
An enclosed conveying system reduces the risk of material contamination and protects operators from exposure to hazardous materials. It also minimizes dust emissions, contributing to a safer and cleaner working environment.
With fewer moving parts than mechanical conveyors, pneumatic systems typically require less maintenance. This results in lower downtime and operating costs over the system's lifespan.
Despite their advantages, pneumatic conveying systems can present challenges that must be addressed through careful design and operation.
Pneumatic systems can be energy-intensive due to the need to compress air. Implementing efficient air movers and optimizing system design can mitigate this issue. Variable frequency drives and proper system controls can also enhance energy efficiency.
Conveying abrasive materials can lead to pipeline wear, necessitating the use of wear-resistant materials or coatings. Regular system inspections and maintenance are essential to prevent leaks and system failures.
Fragile materials may degrade during high-velocity conveying. Selecting a dense phase system and ensuring optimal air velocity can reduce material breakage and preserve product quality.
Advancements in technology continue to enhance the capabilities of pneumatic conveying systems.
Modern systems incorporate intelligent controls that monitor and adjust operating parameters in real-time. This automation improves efficiency, reduces energy consumption, and allows for predictive maintenance scheduling.
Customized solutions are being developed to handle specific materials more effectively. For example, aeration devices can assist with the flow of cohesive materials, while specialized feeders can handle ultra-fine powders.
Improved filtration technologies reduce emissions and recover more product from the conveying air. High-efficiency particulate air (HEPA) filters and pulse-jet cleaning mechanisms maintain system performance and environmental compliance.
Examining real-world applications provides insights into the practical benefits of pneumatic conveying systems.
A major grain processing facility implemented a pneumatic conveying system to transport wheat and corn between storage and processing areas. The system reduced spillage and dust, improving worker safety and product yield. The flexibility of the pipeline routing allowed for future expansion with minimal disruption.
A pharmaceutical company upgraded to a dense phase pneumatic system to handle sensitive active pharmaceutical ingredients. The gentle conveying reduced material attrition, ensuring that the potency of the ingredients was maintained. The closed system design also met stringent regulatory requirements for containment.
The demand for pneumatic conveying systems is expected to grow as industries seek efficient and clean material handling solutions. Integration with Industry 4.0 technologies will further enhance system performance and reliability. Continued research into materials science may yield new pipeline materials that reduce wear and improve energy efficiency.
Pneumatic conveying stands as a vital technology in modern material handling, offering unparalleled flexibility and efficiency. By understanding the fundamental principles and staying abreast of technological advancements, industries can optimize their operations, reduce costs, and improve product quality. The strategic implementation of pneumatic conveying systems will continue to be a cornerstone in the evolution of industrial processes.
