Pneumatic conveying has become an indispensable technology in modern industries, facilitating the efficient transport of bulk materials through pipelines using airflow. This method offers numerous advantages over traditional mechanical conveying systems, including flexibility, reduced maintenance, and improved safety. Understanding the intricacies of pneumatic conveying is essential for industries such as pharmaceuticals, food processing, chemical manufacturing, and more. This article delves into the principles, design considerations, and applications of pneumatic conveying, providing a comprehensive overview for engineers and industry professionals. To gain a deeper understanding of the equipment involved, consider exploring our detailed section on Pneumatic Conveying.
At its core, pneumatic conveying utilizes air pressure or vacuum to move materials through a sealed pipeline. The system relies on the flow of air or gas to transport bulk solids from one point to another. The materials can range from fine powders to pellets and granules. The flow regime within the pipeline can be categorized as either dilute phase or dense phase, each with distinct characteristics and suitable applications.
Dilute phase conveying operates at high velocities and low pressures, ensuring that the conveyed material remains suspended in the air stream throughout the transport process. This method is suitable for materials that are not abrasive or prone to degradation. However, due to the high velocities, there is a risk of material attrition and pipeline wear.
Dense phase conveying, on the other hand, operates at lower velocities and higher pressures. This method allows for the movement of materials in a plug flow or moving bed, reducing the risk of degradation and wear. Dense phase systems are ideal for abrasive, fragile, or heavy materials. They also offer energy efficiency benefits due to the lower velocities involved.
Designing an effective pneumatic conveying system requires careful consideration of various factors, including material properties, conveying distance, pipeline layout, and air supply. Engineers must analyze the bulk density, particle size, moisture content, and abrasiveness of the materials to determine the appropriate conveying method.
Understanding the properties of the conveyed material is crucial. For instance, hygroscopic materials may require dehumidified air to prevent clumping, while abrasive materials necessitate wear-resistant pipelines. Fragile materials benefit from dense phase conveying to minimize particle breakage.
The selection of appropriate pressure and airflow rates is vital for system efficiency. Calculations must account for the required conveying rate, pipeline diameter, and friction losses. Utilizing equipment like a Customized Stable and Efficient Air Source ensures consistent airflow and optimal system performance.
The layout of the pipeline, including bends, elevations, and lengths, impacts the overall efficiency. Gentle curves are preferred over sharp bends to reduce pressure drops and wear. Implementing components like a Customized Aerodynamic Wear-resistant Elbow Pipe can enhance longevity and performance.

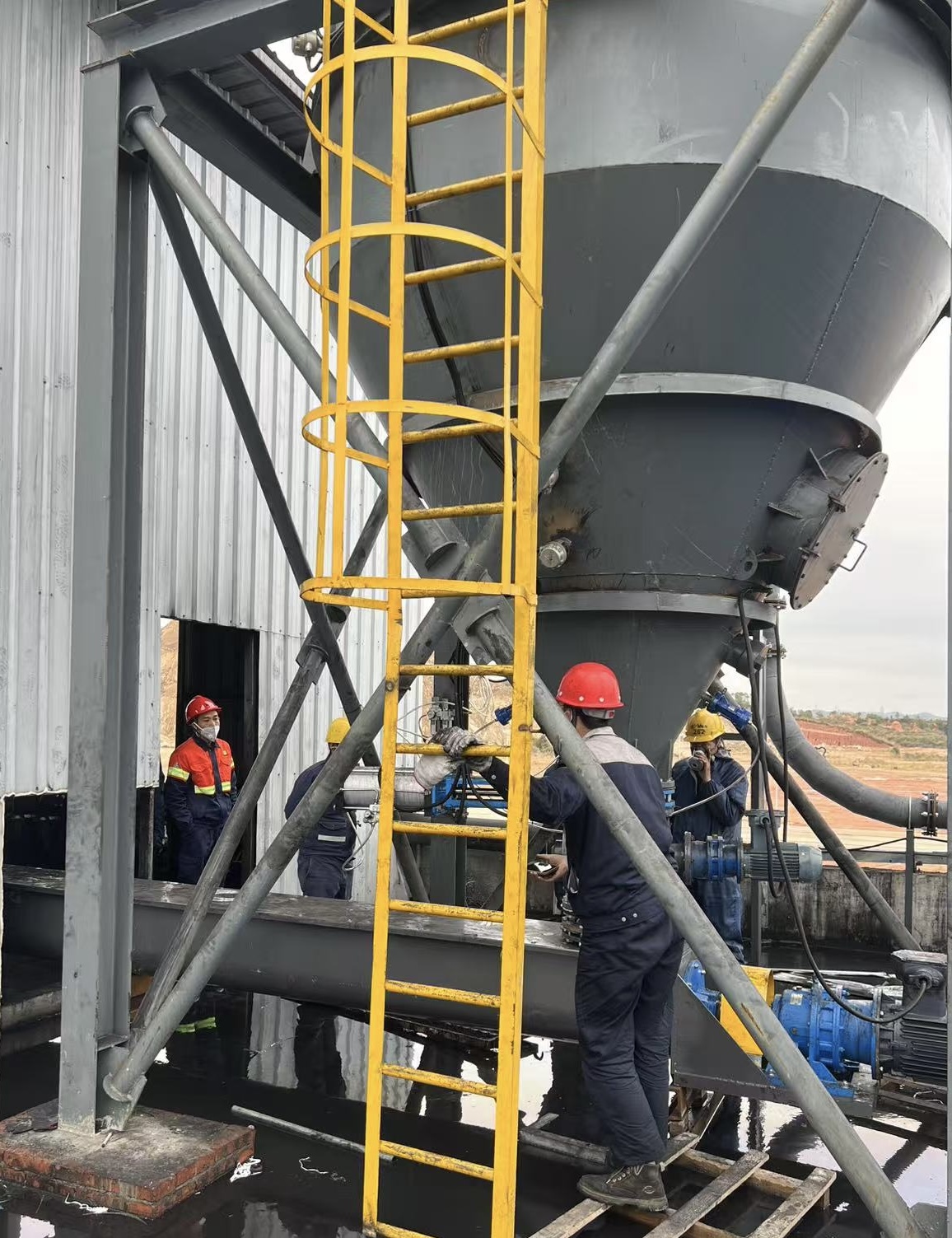

A pneumatic conveying system comprises several critical components, each playing a pivotal role in material transport. Key elements include feeders, pipelines, air movers, receivers, and control systems.
Feeders regulate the introduction of material into the conveying line. Options range from rotary valves to vacuum receivers. Selecting a Customized High-temperature-resistant Feeding Device ensures compatibility with specific material characteristics and operating conditions.
Air movers, such as blowers or compressors, generate the necessary airflow. The choice depends on the pressure and velocity requirements of the system. High-pressure applications may require positive displacement blowers, while low-pressure systems may utilize centrifugal fans.
The pipeline must be designed to withstand the operating pressures and abrasive nature of the materials. Utilizing wear-resistant materials and components, such as a Wear-resistant and High-sealing Ball Valve, extends the system's lifespan.
Pneumatic conveying systems are versatile and find applications in numerous industries. Their ability to handle a wide range of materials makes them ideal for processes that require cleanliness, flexibility, and efficiency.
In the food industry, pneumatic systems transport ingredients like flour, sugar, and grains, maintaining sanitary conditions and preventing contamination. The Pneumatic Conveying of grains ensures gentle handling and preserves product integrity.
Pharmaceutical manufacturing requires stringent hygiene standards. Pneumatic conveying minimizes dust generation and exposure, which is critical for handling active pharmaceutical ingredients (APIs). The system's closed nature also protects sensitive materials from environmental factors.
Chemical industries benefit from the ability to convey hazardous or reactive materials safely. Pneumatic systems reduce the risk of spills and accidents. For insights into handling chemical powders, refer to our article on Chemical Powders Common Forms in the Chemical Industry.
Pneumatic conveying offers several benefits compared to traditional mechanical systems like belt conveyors or screw conveyors. These advantages include reduced maintenance, enhanced safety, and improved environmental control.
Pneumatic systems can be routed around existing equipment and structures, requiring minimal floor space. This flexibility allows for easy integration into existing facilities and the ability to expand or modify the system as needed.
By enclosing materials within pipelines, pneumatic conveying reduces dust emissions and the risk of explosions or inhalation hazards. This containment is particularly important when handling combustible or toxic materials.
With fewer moving parts than mechanical systems, pneumatic conveyors experience less wear and tear. This reduction in mechanical components translates to lower maintenance costs and increased system reliability.
Despite the advantages, pneumatic conveying systems can present challenges such as pipe wear, material degradation, and energy consumption. Addressing these issues is essential for optimal system performance.
Conveying abrasive materials can lead to pipeline erosion. Selecting appropriate materials for pipelines and incorporating wear-resistant components mitigate this issue. Regular inspections and maintenance are also critical.
High-velocity conveying can damage fragile materials. Opting for dense phase conveying reduces velocities and preserves material integrity. Additionally, minimizing bends and disruptions in the pipeline helps prevent particle breakage.
Pneumatic systems can be energy-intensive due to the power required for air movement. Implementing efficient air movers and optimizing system design reduces energy consumption. Monitoring and control systems can adjust airflow based on real-time requirements.
Advancements in technology continue to enhance pneumatic conveying systems. Innovations focus on improving efficiency, automation, and adaptability to complex materials.
Modern systems incorporate sophisticated control mechanisms that monitor pressure, airflow, and material flow rates. Automation enhances consistency and can detect issues before they lead to system failures.
Industries are increasingly requiring traceability of materials throughout the production process. Pneumatic systems can integrate sensors and tracking technologies to monitor material movement, ensuring compliance with regulatory standards.
Energy efficiency is enhanced through the use of energy recovery systems that reclaim heat or kinetic energy from the conveying process. These systems can significantly reduce operational costs and environmental impact.
Examining real-world applications highlights the effectiveness of pneumatic conveying in various scenarios.
A leading pharmaceutical company implemented a pneumatic conveying system to transport powdered ingredients between processing stages. The system improved cleanliness, reduced cross-contamination risks, and increased production efficiency by 20%.
In a grain processing facility, pneumatic conveying replaced traditional mechanical conveyors, reducing spillage and dust emissions. The improved system enhanced worker safety and met environmental regulations.
Proper maintenance is essential for the longevity and reliability of pneumatic conveying systems. Implementing best practices ensures consistent operation and minimizes downtime.
Scheduled inspections can identify wear, leaks, or blockages early. Inspecting components like valves, feeders, and pipelines prevents minor issues from escalating into major failures.
Replacing worn components with high-quality parts extends system life. Access to reliable Parts & Accessories ensures that maintenance activities restore the system to optimal condition.
Training personnel on system operation and safety protocols reduces the likelihood of accidents. Understanding the system's functionality enables staff to operate it efficiently and respond appropriately to any issues.
Pneumatic conveying stands as a critical technology in modern industrial processes, offering efficient and safe material handling solutions. Its application across diverse industries underscores its versatility and effectiveness. By understanding the fundamental principles, design considerations, and best practices outlined in this article, engineers and industry professionals can optimize their systems for better performance and longevity. For comprehensive solutions and expert assistance, visit our Pneumatic Conveying services page.
