Selecting the wrong pneumatic conveying system triggers severe operational consequences. Facilities often face catastrophic pipeline wear, severe product degradation, and unexpected energy drains when systems mismatch material properties. Moving bulk solids presents a complex engineering challenge. You must balance material integrity, system reliability, and physical facility constraints. Misclassifying how a specific material behaves under pressure inevitably leads to system failure, blocked lines, and halted production.
Engineers must evaluate the fundamental mechanics of different conveying methods. The choice between dense phase vs dilute phase conveying dictates the entire infrastructure of your bulk handling operation. This decision relies strictly on empirical material testing and specific velocity requirements. Generic industry preferences cannot replace rigorous technical evaluation. Understanding the exact phase boundaries of your bulk materials ensures long-term operational stability and prevents rapid equipment degradation.
Velocity and Suspension: Dilute phase systems operate at high velocities to keep particles fully suspended in the airflow, while dense phase systems use low velocities to push tightly packed bulk material in concentrated plugs or slugs.
Material Suitability: Dense phase is mandatory for highly abrasive, fragile, or heavy mixed batch materials; dilute phase is highly efficient for non-abrasive, light, and robust powders.
Pressure Differentials: Dilute phase typically operates at lower pressures (0.1 to 1 bar(g)), whereas dense phase requires high-pressure compressed air (often >1 bar(g) up to 6 bar(g) or more) to overcome line friction.
Cost Trade-offs: Dilute phase offers lower Capital Expenditure (CapEx) but potentially higher Operating Expenditure (OpEx) due to energy use and wear; dense phase requires higher initial CapEx but minimizes maintenance and product loss over time.
Table of Contents
Pneumatic conveying success relies on a strict set of criteria. You must move material from Point A to Point B at a required rate. You must achieve this without altering the physical properties of the material. You must also prevent the destruction of the conveying pipeline. Achieving these goals requires a deep understanding of airflow dynamics and particle physics. Different materials require vastly different aerodynamic approaches to flow reliably through a pipe.
Dilute phase systems operate using a high-velocity air stream. Airflow speeds typically exceed 3,000 feet per minute, often reaching up to 8,000 feet per minute depending on the bulk solid. At these velocities, particles remain fully suspended in the air. The material flies through the pipeline much like dust blowing in a strong wind. This suspension requires continuous, high-volume airflow to maintain momentum. The system relies on sheer speed to keep bulk solids moving toward their destination.
Saltation velocity represents a strict engineering threshold in these systems. This term defines the minimum air speed required to keep particles airborne. Dilute phase operations must continuously operate above this velocity. If the air speed drops below the saltation point, material falls out of suspension. It settles on the bottom of the pipe, rapidly creating blockages. Engineers calculate this velocity carefully to ensure uninterrupted material flow.
The equipment profile for dilute phase is relatively straightforward. These systems typically utilize positive displacement (PD) blowers or low-pressure centrifugal fans. These devices generate high volumes of air at low pressures. You can configure these systems in two ways. Pressure systems push material through the line from behind. Vacuum systems pull material through the line using negative pressure at the destination. Both configurations maintain the high velocities necessary for particle suspension.
To operate a standard dilute phase pressure system, facilities follow a specific sequence:
The PD blower activates, establishing the baseline airflow and pressure in the empty pipeline.
The rotary airlock valve begins turning, metering bulk solids from the feed hopper into the moving air stream.
The suspended material travels through the pipeline, navigating elbows and straight runs at high speed.

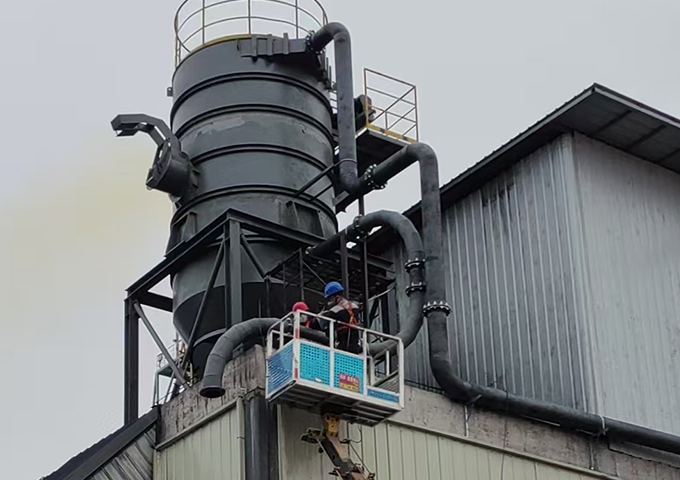

The material exits into a destination silo, where a filter receiver separates the conveying air from the bulk solid.
The rotary valve stops, but the blower continues running for a set purge time to clear the line completely.
Dense phase mechanics operate on entirely different physical principles. These systems use low-velocity, high-pressure air. They move material in a tightly packed bulk state. Engineers refer to this as plug flow or a moving bed. The material travels well below the saltation velocity. Instead of flying through the air, the material pushes through the pipe in concentrated slugs. This gentle pushing action drastically reduces the speed of the conveyed product, often keeping it below 1,000 feet per minute.

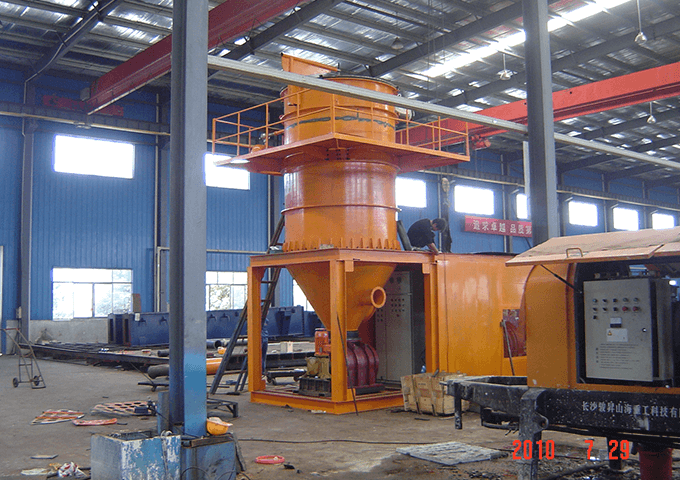

This method requires specialized, heavy-duty equipment. Standard blowers cannot generate the necessary force. Dense phase systems require high-pressure industrial air compressors. They also utilize specialized ASME-rated pressure vessels known as transporters. The material loads into these pressure vessels first. The system then seals the vessel and injects high-pressure air. This compressed air forces the heavy, compacted material into the conveying line.
The air-to-material ratio defines the efficiency of this process. Dense phase systems feature a high concentration of solids relative to the volume of air. They use a fraction of the air required by dilute phase systems. The material moves in a slower, highly concentrated manner. This high phase density allows facilities to move massive volumes of heavy product using minimal air volume, relying entirely on high pressure to overcome pipeline friction.
A standard dense phase batch cycle involves several distinct mechanical steps:
The inlet valve opens, allowing material to drop from the storage silo into the pressure vessel.
A level probe detects when the vessel is full, triggering the inlet valve and vent valve to close and seal.
High-pressure compressed air enters the vessel, fluidizing the material and building internal pressure.
The discharge valve opens, and the compressed air pushes the solid plug of material into the conveying line.
Once the vessel empties, the air supply shuts off, the line purges, and the vessel vents to atmospheric pressure to begin the next cycle.
Comparing these two systems reveals stark contrasts in engineering metrics. Each method solves the bulk material handling problem using opposite approaches to aerodynamics and pressure. Evaluating these technical differences helps engineers match the correct technology to specific facility requirements.
Velocity and pressure share an inverse relationship in pneumatic conveying. Dilute phase systems require high velocities but operate at low pressures. Industry standards place dilute phase operating pressures between 0.1 and 1 bar(g) (approximately 1.5 to 15 PSIG). The high air speed does the work, so extreme pressure is unnecessary. The blowers simply need to overcome the basic resistance of the suspended particles and the pipe walls.
Dense phase systems flip this dynamic completely. They operate at very low velocities but demand extremely high pressures. Operating pressures typically start above 1 bar(g) and frequently reach 6 bar(g) (up to 90 PSIG) or higher. Pushing solid plugs of material creates immense friction against the pipeline walls. High-pressure compressed air provides the raw force needed to break this friction and keep the heavy material moving forward.
Phase density measures the mass of the conveyed product divided by the mass of the conveying air. This ratio provides a clear mathematical distinction between the two systems. Dilute phase systems operate with very low phase densities. Standard ratios for dilute phase typically fall below 15. This means there is a large amount of air carrying a relatively small amount of material at any given moment.
Dense phase systems operate at much higher phase densities. Standard ratios for dense phase typically exceed 15 and often reach up to 100 or more. The pipeline contains mostly product and very little air. This high ratio makes dense phase highly efficient for moving massive tonnages. The compressed air acts primarily as a pushing mechanism rather than a suspending medium.
Engineers calculate phase density using the following field steps:
Measure the total mass of bulk solid transferred during a specific time frame (e.g., pounds per hour).
Calculate the total mass of conveying air introduced into the system over that same exact time frame.
Divide the mass of the product by the mass of the air to establish the baseline ratio.
Adjust blower or compressor outputs to shift the ratio up or down depending on pipeline performance.
Dilute phase systems naturally lend themselves to continuous processing. Material feeds into the conveying line without interruption. Facilities achieve this using rotary airlock valves. These valves drop material into the moving air stream while maintaining the pressure boundary. The blower runs continuously, and the product flows continuously. This makes dilute phase ideal for processes requiring a steady, uninterrupted feed rate.
Dense phase traditionally operates as a batch process. The cycle involves filling the pressure vessel, sealing it, conveying the compact plug, venting the system, and repeating. This intermittent flow can complicate downstream processing. However, engineers can simulate continuous flow using twin pressure vessels. While one vessel fills, the other conveys. This alternating setup provides a near-continuous output, though it requires more complex valving and control logic.
Operational Metrics Comparison
Parameter | Dilute Phase | Dense Phase |
|---|---|---|
Conveying Velocity | High (>3,000 ft/min) | Low (<1,000 ft/min) |
Operating Pressure | Low (0.1 to 1 bar(g)) | High (1 to 6+ bar(g)) |
Phase Density Ratio | Low (<15) | High (>15 to 100+) |
Operation Mode | Continuous | Batch (or simulated continuous) |
Air Supply | PD Blowers / Fans | High-Pressure Compressors |
Material properties dictate the appropriate conveying phase. Ignoring these properties guarantees system failure. You must map specific physical traits to the correct aerodynamic method. Abrasiveness, friability, density, and moisture content all play critical roles in this engineering decision.
The physics of pipeline wear follow a strict mathematical rule. Pipeline erosion increases exponentially with velocity. Specifically, wear rates are proportional to the velocity cubed. Doubling the speed of an abrasive particle increases its destructive force by a factor of eight. High-velocity impacts rapidly destroy steel pipes, elbows, and rotary valves. Dilute phase systems accelerate abrasive wear, leading to frequent blowouts and maintenance shutdowns.
Dense phase is absolutely mandatory for abrasive materials. Products like silica sand, fly ash, and glass cullet require low-velocity handling. By moving these materials in slow, compact plugs, dense phase minimizes friction against the pipe walls. The particles barely scrape the surface as they travel. This low-speed approach extends the lifespan of elbows and straight runs by years, preventing hazardous leaks and costly downtime.
Fragile materials suffer severe damage in high-velocity air streams. High-speed impacts against pipe walls and elbows shatter delicate particles. Materials like roasted coffee beans, pet food kibble, and spray-dried powders degrade rapidly in dilute phase systems. This degradation ruins product appearance. It also generates excessive dust and fines, which complicate downstream packaging and create combustible dust hazards.
Dense phase protects particle integrity. It preserves the original bulk density of the product. By moving material at lower speeds, the system eliminates violent collisions. The particles remain packed together within the plug, cushioning each other during transit. This gentle handling ensures that fragile products arrive at their destination in the exact same condition they entered the system.
Heavy materials require massive amounts of energy to suspend in a dilute phase system. Attempting to blow heavy metal powders or dense aggregates at high speeds demands oversized blowers and wastes electricity. Dense phase proves much more efficient for these heavy products. High-pressure air easily pushes dense slugs of material without fighting gravity to keep them suspended.
Mixed batches present another significant challenge. Blended ingredients often suffer from material segregation during transport. In a dilute phase system, lighter particles fly faster than heavier ones. The blend separates before reaching the destination. Dense phase plug-flow prevents this separation. The tightly packed slugs lock the particles in place. The blend remains perfectly homogeneous from the start of the line to the finish.
Moisture-sensitive and sticky materials complicate pneumatic conveying. Hygroscopic powders absorb moisture from the conveying air, causing them to clump and block the pipeline. Dilute phase systems introduce massive volumes of ambient air. Conditioning this large volume of air to remove moisture requires massive, energy-intensive desiccant dryers.
Dense phase systems handle hygroscopic materials more effectively. They use a much smaller volume of compressed air. Drying and conditioning this small volume of air is highly efficient and straightforward. Furthermore, the high pressure in dense phase lines can force sticky materials through the pipe, whereas low-pressure blowers would simply stall against the resistance.
Material Suitability Matrix
Material Type | Example Products | Recommended Phase | Engineering Rationale |
|---|---|---|---|
Highly Abrasive | Silica Sand, Fly Ash, Alumina | Dense Phase | Low velocity prevents rapid pipeline and elbow erosion. |
Highly Friable | Coffee Beans, Pet Food, Nuts | Dense Phase | Gentle plug flow prevents particle shattering and dust generation. |
Light & Non-Abrasive | Flour, Plastic Pellets, Starch | Dilute Phase | Easily suspended in air; continuous flow maximizes throughput. |
Mixed Blends | Baking Mixes, Glass Batching | Dense Phase | Packed slugs prevent lighter particles from separating from heavier ones. |
Physical plant limitations heavily influence the choice of conveying system. You must assess your facility's layout, structural capacity, and existing utilities. Engineering a system requires fitting complex machinery into finite physical spaces while meeting production goals.
Maximum effective conveying distances vary significantly between the two methods. Dilute phase systems face strict limitations based on blower pressure capabilities. As the pipeline gets longer, friction increases. A standard PD blower can only push material so far before it reaches its maximum pressure rating. Dilute phase typically maxes out at a few hundred feet.
Dense phase easily pushes materials over much longer distances. The high-pressure compressed air provides enough force to overcome massive friction loads. Facilities routinely use dense phase to move materials thousands of feet across large industrial complexes. If your routing requires long runs between distant silos and processing buildings, high-pressure transport becomes the only viable engineering solution.
The physical footprint of the equipment dictates installation feasibility. Dilute phase systems generally require less vertical space. Rotary valves sit directly under silos, and blowers can sit on the floor nearby. The piping is relatively lightweight. This makes dilute phase easier to integrate into tight spaces with low headroom.
Dense phase systems demand significant vertical clearance. ASME pressure vessels are tall and require substantial headroom beneath feed hoppers. Additionally, the pipelines carry heavy, concentrated plugs of material. This massive weight requires heavy-duty structural pipe supports. Facilities must ensure their roof structures and pipe racks can handle the dynamic loads generated by dense phase slugs moving through the line.
Evaluating facility readiness involves checking existing utilities. Does the plant already have excess high-pressure compressed air capacity? If a facility has large industrial compressors with available CFM, integrating a dense phase system becomes much simpler. You can tap into the existing air header.
If the plant lacks compressed air infrastructure, installing dedicated compressors adds significant complexity. In such cases, if the material allows, installing dedicated PD blowers for a dilute phase system might prove more practical. Blowers operate independently of the plant air system, simplifying the utility requirements for the new bulk handling line.
Engineers evaluate facility constraints using these specific steps:
Measure the exact vertical clearance from the silo discharge flange to the floor to determine if a pressure vessel fits.
Calculate the total equivalent length of the proposed pipeline, factoring in every elbow and vertical lift.
Audit the plant's existing compressed air system to verify available CFM and sustained pressure ratings.
Inspect existing pipe racks to confirm they can support the dynamic weight of dense phase material slugs.
Deploying pneumatic conveying systems involves substantial engineering risk. Theoretical calculations often fail when applied to real-world bulk solids. You must implement strict mitigation strategies to avoid costly design mistakes and operational failures.
Never rely solely on theoretical calculations for pneumatic conveying design. Bulk solids behave unpredictably under pressure and velocity changes. You must mandate pilot-scale testing in a vendor's test lab. Use the exact material from your facility, not a generic substitute. Moisture content, particle shape, and ambient temperature drastically alter flow characteristics.
Product testing remains the only definitive way to identify a material's exact saltation velocity. It reveals the precise phase transition boundaries. Testing shows exactly when a material stops flying and starts plugging. Engineers use this empirical data to size the blowers, specify the pipe diameter, and design the filtration systems accurately.
Line blockages threaten both types of systems. In dilute phase, a sudden drop in blower RPM or a surge in feed rate causes immediate dropout. The material falls to the bottom of the pipe and chokes the airflow. In dense phase, excessive moisture or a drop in compressor pressure can stall a heavy plug mid-pipe.
You must engineer mitigation strategies directly into the pipeline. Install air assist valves or booster fittings along dense phase lines. These inject secondary air to break up stalled plugs. For dilute phase, establish strict purge cycles. Ensure the blower runs for several minutes after the rotary valve stops. This clears the line completely before the system shuts down.
Facilities handling multiple products face strict cleaning requirements. Clean-in-place (CIP) protocols and changeovers present major challenges. Dilute phase systems are generally easier to purge. The continuous high-velocity air sweeps the pipeline clean. Rotary valves feature accessible designs for quick manual wipe-downs between product runs.
Dense phase vessels present complex cleaning challenges. Pressure vessels contain internal valves, probes, and fluidizing cones. Material can hide in these crevices. Purging a dense phase system requires multiple high-pressure blasts. If cross-contamination is a critical risk, you must specify sanitary-grade pressure vessels with easy-access hatches and minimal internal obstructions.
The choice between dense phase and dilute phase conveying requires strict alignment with material properties, saltation velocities, and operational goals. Forcing a heavy, abrasive material into a high-speed line destroys equipment. Pushing a light, robust powder through a high-pressure vessel wastes resources. Choose dilute phase if your material is light, non-abrasive, and non-fragile. Choose dense phase if your material is highly abrasive, friable, heavy, or prone to segregation.
As a trusted global leader in custom pneumatic system engineering, Jstark delivers state-of-the-art bulk material handling solutions tailored to your unique operational parameters, ensuring maximum throughput and long-term reliability.
Take the following steps to advance your system design:
Compile comprehensive material safety data sheets (MSDS) and particle size distributions for all handled products.
Calculate your exact required throughput rates and map the total conveying distance, including all vertical lifts and elbows.
Schedule empirical material testing with a qualified pneumatic conveying engineer using your actual facility material.
Evaluate your existing plant compressed air infrastructure to determine available capacity for high-pressure systems.
A: Dilute phase systems operate at low pressures, typically ranging from 0.1 to 1 bar(g). They rely on high-velocity air to suspend materials. Dense phase systems require much higher pressures, generally operating between 1 and 6 bar(g) or higher, to push heavy, compacted plugs of material through the pipeline.
A: Converting requires major engineering overhauls. You cannot simply slow down the air. You must replace low-pressure blowers with high-pressure air compressors. You also need to replace rotary valves with ASME-rated pressure vessels. Additionally, the existing piping must be evaluated to ensure it meets the higher pressure ratings.
A: Dense phase conveying is superior for fragile materials. It moves product in compact plugs at very low speeds. This prevents the high-velocity impacts against pipe walls and elbows that cause particle degradation, shattering, and excessive dust generation common in dilute phase systems.
A: Dense phase pushes heavy, solid plugs of material that create immense friction against the pipe walls. Standard blowers cannot overcome this resistance. The system requires high-pressure industrial air compressors to generate the raw force needed to move the concentrated material, along with specialized pressure vessels.
A: You should use dense phase if your material exhibits high Mohs hardness (abrasiveness), high friability, or high bulk density. It is also required for blended materials that demand zero segregation during transport. Always conduct empirical product testing to confirm the exact phase boundaries.
