Engineers and plant managers often struggle to secure baseline equipment expenses without committing to a lengthy sales process. When planning facility upgrades or new production lines, waiting weeks for a preliminary quote stalls project momentum. With the global bulk material handling market expanding rapidly as facilities modernize their infrastructure, transparent evaluation of capital equipment becomes necessary for accurate project planning.
Budgeting for bulk material transfer requires looking far beyond the initial sticker price of the equipment. Miscalculating operational expenses, energy consumption, routine maintenance, and complex installation requirements can quickly derail project returns. Evaluating the true pneumatic conveying system cost means analyzing capital expenditures, long-term operational demands, implementation risks, and the specific physics of the materials being moved. This guide breaks down the core factors that drive equipment investment and operational expenses.
Broad Price Range: Initial equipment and installation expenses vary widely from simple, short-distance setups to high-capacity, highly automated, plant-wide systems.
Phase Dictates Price: Dilute phase systems generally offer a lower initial CapEx, while dense phase systems require higher upfront investment but often yield lower long-term energy and maintenance expenses for abrasive materials.
Lifecycle Expenses are Critical: Energy consumption (compressed air/blowers) and wear-part replacement (rotary valves, elbows) often eclipse the initial purchase price within the first three to five years of operation.
Hidden ROI: Upgrading from manual handling to pneumatic conveying offsets significant indirect expenses, including product loss, dust mitigation, and severe worker injury liabilities.
Table of Contents

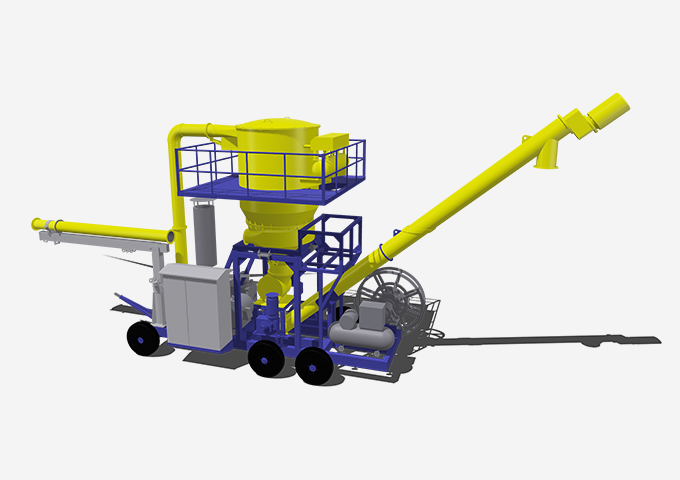

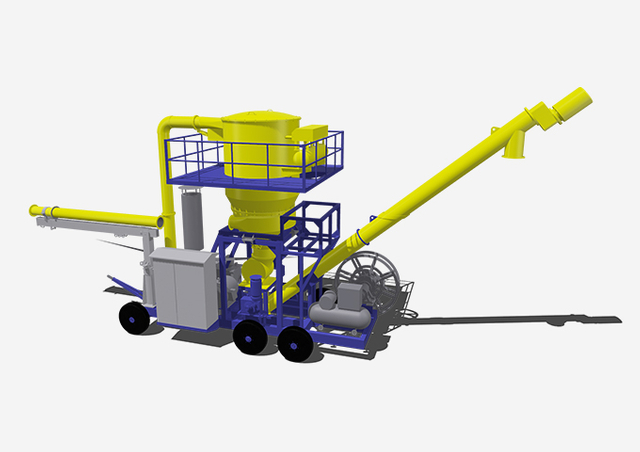

Defining the scope of a complete material handling setup is the first step in understanding the required investment. A functional system is never just a pipe and a blower. It requires a prime mover to generate airflow, an infeed mechanism like a rotary airlock valve or eductor to introduce material into the line, the conveying piping itself, a receiving vessel such as a filter receiver or cyclone to separate the material from the air, and the electrical controls to manage the process. Each of these components scales in size, complexity, and expense based on the application.
Entry-level setups typically handle short transfer distances and low throughput requirements. These systems excel at moving non-abrasive, free-flowing materials like plastic pellets, grain, or simple powders. Because the operational demands are relatively low, the engineering and component requirements remain straightforward. Facilities often deploy these setups for vacuum sequencing from bulk bags to day bins or feeding extruders.
Standard carbon steel construction for piping and structural supports.
Basic relay controls with manual push-button operation.
Minimal routing complexity with straight runs and few directional changes.
Standard positive displacement blowers operating at lower pressures.
Simple cartridge filters rather than complex pulse-jet baghouses.
When facilities need to move high tonnages over long distances, or handle highly abrasive, fragile, or hazardous materials, the required investment scales significantly. These systems often feature multiple pickup and drop-off points, requiring complex diverter valves and sophisticated automation to manage material flow across a large plant footprint. Engineering these systems requires precise calculations for air-to-cloth ratios, saltation velocities, and pressure drops across hundreds of feet of piping.
Heavy-duty stainless steel or specialized alloy construction for sanitary or corrosive environments.
Explosion-proof components compliant with strict combustible dust regulations.
ASME-rated pressure vessels and specialized air injection valves for dense phase transfer.
Advanced PLC integration with custom HMI programming for seamless facility operation.
Rotary valves with hardened rotor tips and specialized shaft seals to withstand abrasive wear.
The method used to transport the material through the pipeline fundamentally dictates the equipment design and the resulting capital expenditure. Dilute phase conveying operates by suspending particles in a high-velocity airstream. This method represents the most budget-friendly upfront option. It utilizes standard positive displacement blowers, requires lower pressure ratings across the system, and uses lighter-gauge piping. Dilute phase is highly effective for short distances and materials that are neither highly abrasive nor prone to degradation.
Dense phase conveying pushes material through the pipeline in slugs or a continuous dense bed at much lower velocities. This method requires a significantly higher initial investment. Dense phase systems rely on high-pressure industrial air compressors rather than standard blowers. They require heavy-duty, ASME-certified pressure vessels to introduce material into the line, along with specialized air injection valves placed along the piping to maintain material movement. Despite the higher upfront capital required, dense phase is often the only viable option for highly abrasive materials like silica sand or fragile materials like roasted coffee beans, where high-velocity dilute phase transfer would destroy the product or erode the piping.
System Phase Comparison
Characteristic | Dilute Phase | Dense Phase |
|---|---|---|
Air Velocity | High (typically above 3000 FPM) | Low (often below 1000 FPM) |
Material Suspension | Fully suspended in airstream | Moves in slugs or dense bed |
Prime Mover | Positive displacement blower | High-pressure air compressor |
Operating Pressure | Low (under 15 psig) | High (up to 100 psig) |
Ideal Applications | Non-abrasive, durable materials | Abrasive, fragile, or mixed batches |
The physical properties of the bulk solid dictate the materials of construction for the entire system. Abrasive materials rapidly erode standard carbon steel components. Moving materials like cement, fly ash, or fiberglass requires heavy-duty piping, ceramic-lined elbows, and specialized rotary valves with hardened rotor tips. Upgrading to these wear-resistant components significantly increases the initial equipment investment but prevents catastrophic system failure and frequent replacement. Engineers measure abrasiveness using the Mohs hardness scale; materials scoring higher than a four typically demand specialized wear-resistant metallurgy.
Sanitary and compliance requirements also act as major multipliers for the equipment budget. Food-grade, dairy, or pharmaceutical applications mandate strict adherence to sanitary standards like FDA or 3A Dairy. These systems require 304 or 316L stainless steel construction throughout. Every weld must be ground smooth and polished to a specific grit finish to eliminate crevices where bacteria could grow. Furthermore, the system may require clean-in-place capabilities, necessitating specialized spray nozzles, drainage points, and demountable components that add considerable engineering and manufacturing expense.
The distance material must travel directly impacts the size and power of the prime mover. Longer transfer distances generate higher pressure drops across the system. Overcoming this resistance requires larger blowers or compressors with higher horsepower ratings. As the prime mover scales up, the diameter of the conveying piping must also increase to maintain the correct air-to-cloth ratio and conveying velocity. This means the investment scales exponentially rather than linearly as distance increases.
Routing complexity further drives up the initial capital required. Engineers calculate routing difficulty using "equivalent length." Every 90-degree elbow adds roughly 20 feet of equivalent straight pipe to the system's total resistance. Vertical lifts require more energy to overcome gravity than horizontal runs. Systems requiring multiple elbows, diverter valves to serve different receiving bins, and extensive structural supports for overhead piping demand more engineering hours and more expensive hardware than a simple straight-line transfer.
Higher pounds-per-hour requirements necessitate larger equipment across the board. Moving massive volumes of material requires larger filter receivers to separate the increased volume of air from the product. Rotary airlock valves must be upsized to handle the increased volumetric flow without exceeding their optimal RPM limits. The structural engineering required to support massive, heavy-duty receiving vessels on the plant roof or above silos adds significant expense to the overall project scope. Larger systems also demand larger motor control centers and heavier electrical wiring to support the increased horsepower.
Modern bulk material handling relies heavily on intelligent control systems. The level of automation chosen drastically impacts the final equipment investment. Basic systems utilize simple push-button relay logic. These setups require manual operator intervention to start and stop the process, monitor levels, and switch diverter valves. While budget-friendly, they leave room for human error and process inefficiencies. Relay logic is generally only suitable for standalone systems moving a single material from point A to point B.
Advanced control systems utilize Programmable Logic Controllers paired with intuitive Human-Machine Interfaces. These automated setups monitor pressure differentials, track material levels in silos, and automatically adjust blower speeds using variable frequency drives. Designing, programming, and testing these custom control panels requires specialized electrical engineering expertise, adding a substantial premium to the project. PLCs allow for complex sequencing, such as purging the line before shutdown to prevent material settling and plugging.
Plant integration introduces another layer of investment. Tying a new material handling setup into an existing plant SCADA or ERP system allows for automated batching, precise inventory tracking, and remote diagnostics. This requires sophisticated communication protocols and custom software integration. Additionally, the physical instrumentation required for automation adds numerous line items to the final equipment quote. Common instrumentation includes:
Continuous radar or ultrasonic level sensors for silos.
Differential pressure transmitters across filter receivers to trigger pulse-jet cleaning.
Capacitance probes for high-level and low-level point indication.
Automated pneumatic diverter valves with position-proving limit switches.
Vibration sensors on blower motors for predictive maintenance.
Moving bulk solids with air is inherently energy-intensive. The electrical demand required to run positive displacement blowers or plant air compressors continuously during production represents the largest ongoing operational expense. When evaluating the long-term financial impact, engineers must calculate the electrical draw over a ten-year lifecycle. Often, the electricity required to power the prime mover will exceed the initial purchase price of the equipment within the first few years of operation. System efficiency variables play a crucial role in mitigating these expenses. Incorporating variable frequency drives increases the initial capital expenditure but allows the system to adjust blower speeds based on real-time demand. Running a blower at partial capacity when full throughput is not required significantly reduces long-term energy consumption.
Pneumatic systems require consistent preventative maintenance to operate efficiently. Filter media replacement is a recurring consumable expense. Dust collectors and filter receivers rely on fabric bags or pleated cartridges to separate dust from the exhaust air. These filters eventually blind over with fine particles and require periodic replacement to prevent pressure build-up and loss of suction. Operating a system with blinded filters reduces conveying capacity and forces the blower to work harder, increasing energy draw and heat generation.
Mechanical wear is inevitable, especially in dilute phase systems handling abrasive bulk solids. Rotary airlock valves maintain the pressure differential between the conveying line and the atmosphere. Over time, the tight clearances between the rotor tips and the valve housing wear down. Standard clearances are typically between 0.004 and 0.006 inches. When abrasive materials open this clearance, air leaks upward through the valve, reducing conveying capacity and creating dust at the inlet. Routine maintenance procedures include:
Measuring rotor-to-housing clearances with feeler gauges quarterly.
Replacing adjustable rotor tips when clearances exceed manufacturer specifications.
Inspecting conveying line elbows for thinning walls using ultrasonic thickness gauges.
Replacing or patching elbows before they blow out and release dust into the facility.
Checking blower belt tension and replacing worn belts to maintain optimal RPM.
When evaluating bulk material transfer, engineers often compare air-driven systems against mechanical alternatives like bucket elevators, screw conveyors, and drag chain conveyors. For short, straight-line distances, mechanical conveyors generally require a lower upfront investment. A simple screw conveyor moving material ten feet horizontally is almost always cheaper than engineering a blower, rotary valve, and filter receiver for the same task. Mechanical systems also operate with lower horsepower requirements, making them highly efficient for moving massive volumes of heavy aggregates.
However, material compatibility limits often dictate the technology choice. While air-driven systems excel at moving powders, granules, and pellets, they struggle with very large, irregular, or highly cohesive materials. Wet sludge or massive aggregates require mechanical systems, as engineering an air-driven solution for these materials would be prohibitively expensive and prone to plugging. Conversely, mechanical systems struggle to maintain the strict dust containment required for hazardous or combustible powders.
Footprint and installation flexibility strongly favor air-driven setups. Mechanical systems require strict, straight-line footprints. Navigating around existing plant infrastructure with a drag chain conveyor often requires expensive facility modifications, structural steel work, or multiple transfer points. Conveying pipe, conversely, can be routed vertically, horizontally, and around corners with relative ease, saving massive amounts of money on facility modifications. Long-term maintenance profiles differ drastically between the two technologies. Mechanical conveyors feature numerous moving parts—bearings, chains, sprockets, and belts—all of which require continuous lubrication, tensioning, and replacement. Air-driven systems have very few moving parts in contact with the material, trading higher electrical energy consumption for significantly lower mechanical maintenance demands.
Skipping pilot-scale material testing is one of the most dangerous financial risks a facility can take. Bulk solids behave unpredictably under pressure and velocity. Unforeseen material behaviors like bridging in hoppers, rat-holing, severe degradation, or smearing inside the pipe can lead to catastrophic system failure. Discovering these issues during commissioning requires extremely expensive retrofits, oversized equipment replacements, and weeks of unplanned downtime. Investing in comprehensive material testing upfront mitigates this risk entirely. Testing facilities analyze bulk density, particle size distribution, moisture content, and angle of repose to engineer a system that guarantees flow.
Under-sizing the system through aggressive value-engineering creates severe operational bottlenecks. Attempting to save capital by specifying a marginally sized blower or smaller diameter piping often results in frequent line plugging. Clearing a plugged conveying line requires significant manual labor and halts production entirely. Operators must dismantle sections of pipe, manually clear the packed material, and reassemble the line. The lost revenue from a single day of downtime often exceeds the capital saved by under-sizing the equipment.
Installation and commissioning realities are frequently overlooked during the budgeting phase. Installing heavy industrial equipment requires specialized labor, heavy rigging, structural reinforcement for roof-mounted filter receivers, and extensive electrical drops. Complex installations in active facilities with tight access constraints can scale the overall investment considerably. Running four-inch schedule 40 pipe through a crowded facility requires structural supports, welding, and man-lifts. Facilities must account for these mechanical and electrical contractor expenses when evaluating the total project budget.
Justifying the investment requires looking at the inefficiencies eliminated by automation. Reallocating operators from manual bag dumping to higher-value tasks provides immediate financial benefits. Manual transfer is slow, physically demanding, and limits the overall throughput of the production line. Automating this process allows the facility to scale production without scaling headcount. Moving from 50-pound bags to bulk bags or bulk trucks drastically reduces material procurement expenses and packaging waste.
Mitigating indirect expenses related to safety provides massive returns. Manual handling of dusty or hazardous bulk solids exposes workers to ergonomic injuries and respiratory issues. Eliminating worker compensation claims related to repetitive strain or exposure is a critical financial driver. Enclosing the process protects the workforce and eliminates these liabilities. Furthermore, fully enclosed systems mitigate the risk of combustible dust explosions, reducing insurance premiums and ensuring compliance with strict OSHA and NFPA regulations.
Product yield improvements directly impact the bottom line. Manual transfer methods and open mechanical conveyors result in material spillage, airborne dust loss, and potential contamination. Enclosed air-driven systems capture all material, ensuring every pound purchased makes it into the final product. Reducing waste and eliminating contamination rejections accelerates the return on investment. When handling expensive pharmaceutical powders or specialty chemicals, capturing an additional one percent of material yield can justify the equipment investment within months.
Document precise bulk density, particle size distribution, and moisture content data for all materials you intend to convey.
Map out exact transfer distances, including all vertical lifts, required directional changes, and facility routing constraints.
Audit your existing compressed air capacity and electrical infrastructure to determine if new prime movers or motor control centers are necessary.
Schedule pilot-scale material testing with a system integrator to verify flow characteristics before finalizing any equipment specifications.
To ensure optimal performance and budget predictability, partnering with an experienced industry expert is critical. As an established global leader in engineered material handling solutions, Jstark combines decades of technical innovation, high-precision manufacturing, and rigorous testing capabilities to deliver tailored, cost-effective pneumatic conveying systems worldwide.
A: Dense phase systems require high-pressure ASME-rated vessels, specialized air injection valves, and heavy-duty piping to move material at lower velocities. These robust components inherently demand a higher upfront investment compared to the standard blowers and lighter piping used in dilute phase setups.
A: Every directional change and vertical lift adds equivalent length to the system, requiring larger blowers and wider piping. Complex routing also demands more structural supports, specialized rigging, and extended labor hours, which significantly increases mechanical contractor expenses.
A: Electrical energy consumption represents the largest ongoing operational expense. Powering positive displacement blowers or high-pressure plant air compressors continuously during material transfer requires substantial electricity, making energy-efficient designs and variable frequency drives necessary for long-term savings.
A: Yes, existing systems can be upgraded, but it requires careful engineering. Increasing capacity often involves retrofitting larger blowers, expanding line sizes, or upgrading filter receivers to handle the higher air and material volume without causing line plugging or excessive pressure drops.
A: Highly abrasive materials cause rapid wear on standard carbon steel components. Handling them requires premium upgrades like ceramic-lined elbows, hardened rotary valves, and lower-velocity dense phase designs, which increase the initial capital expenditure but prevent premature component failure.
A: Screw conveyors generally require a lower initial investment for short, straight-line distances. However, air-driven systems become much more cost-effective when dealing with complex routing, multiple destination points, or long distances, as they avoid the need for multiple mechanical transfers and structural modifications.
