Specifying the wrong bulk material handling system introduces severe operational risks to any processing facility. Product degradation, fugitive dust emissions, excessive downtime, and strict OSHA or EPA compliance violations frequently stem from mismatched conveying equipment. Facility engineers and plant managers face a complex decision matrix when moving powders and bulk solids. Balancing throughput requirements with facility constraints, hygiene standards, material integrity, and labor ergonomics often leads to conflicting equipment choices. This technical evaluation guide determines exactly when vacuum conveying is the optimal choice over positive pressure pneumatic systems or mechanical conveyors like screw, bucket, or aeromechanical systems. We will look at material behavior, pipeline interaction, and containment mechanics to help you specify the right equipment for your plant.
Containment is the Primary Driver: Vacuum conveying is inherently leak-inward, making it the superior choice for hazardous, toxic, or highly combustible dusts where operator safety is non-negotiable.
Ideal for Short-to-Medium Distances: The technology excels in complex routing scenarios under 300 feet, but faces diminishing returns in energy efficiency over long distances compared to positive pressure systems.
Preserves Material Integrity: Dilute and dense phase vacuum systems offer gentler handling profiles for friable, temperature-sensitive, or easily degraded materials compared to mechanical alternatives.
Seamless Automation Integration: Modern vacuum systems easily integrate with existing PLC/SCADA networks, enabling precise batching and reducing manual labor.
Requires Empirical Testing: Because bulk density, moisture, and particle size dictate success, theoretical calculations must be validated by physical material testing before final specification.
Table of Contents
Establishing the baseline mechanics of different transfer methods provides the necessary context for equipment evaluation. Bulk material handling generally falls into three categories: pulling with negative pressure, pushing with positive pressure, or moving physically via mechanical force. Understanding these dynamics reveals why certain systems fail where others succeed in industrial environments.
Vacuum systems utilize negative pressure to pull material from a source to a destination. A vacuum generator creates a pressure differential inside a receiver vessel. This generator is typically a positive displacement rotary lobe blower, a regenerative blower, or a compressed-air-driven venturi. Atmospheric air rushes into the pickup point, entraining the bulk material and carrying it through the pipeline to the receiver. Positive pressure systems operate in reverse. A blower introduces pressurized air at the source, pushing the material through the line toward a destination. The fundamental difference lies in the pressure gradient. Vacuum systems operate below atmospheric pressure, usually pulling down to 15 inches of mercury (inHg), while positive pressure systems operate above it, often pushing at 15 to 60 pounds per square inch gauge (psig).
Mechanical systems rely on physical displacement to move bulk solids. Screw conveyors use rotating flighting inside a tube or trough, bucket elevators lift material in enclosed scoops attached to a tensioned belt, and drag chains pull material along a housing using paddles. The structural differences between these and pneumatic systems are stark. A vacuum system features no moving parts within the material flow path, aside from the discharge valves at the end of the cycle. Mechanical systems introduce friction, pinch points, bearing seals, and metal-on-metal contact directly into the product stream. This mechanical action often crushes friable materials and creates excessive wear when handling abrasive powders. Furthermore, mechanical systems require extensive teardowns for cleaning, whereas pneumatic pipelines can often be flushed or wiped down rapidly.
Facility layout dictates equipment selection just as much as material characteristics. Mechanical conveyors demand straight-line access. If you need to navigate around a structural column, bypass existing ductwork, or reach a mezzanine, mechanical systems require complex transfer points, multiple drives, and significant floor space. Vacuum systems utilize flexible or rigid tubing—commonly 2-inch to 6-inch outside diameter sanitary tube or standard pipe—that routes vertically, horizontally, and around existing infrastructure. This routing flexibility allows engineers to install transfer lines in tight overhead spaces, preserving valuable floor real estate for other processing equipment.
Comparison of Bulk Material Handling Technologies
Feature | Vacuum Conveying | Positive Pressure | Mechanical Conveying |
|---|---|---|---|
Pressure State | Negative (Below atmospheric) | Positive (Above atmospheric) | Atmospheric |
Containment | Excellent (Inward leak) | Poor (Outward leak on breach) | Moderate to Poor |
Routing Flexibility | High (Complex bends) | High (Complex bends) | Low (Straight lines required) |
Moving Parts in Flow | None | None (Except rotary valves) | Many (Augers, chains, buckets) |
Distance Capability | Short to Medium (<300 ft) | Long (1000+ ft) | Varies heavily by type |
Certain processing environments demand the specific physics provided by negative pressure. When evaluating various vacuum conveying applications, plant engineers must prioritize containment, hygiene, and material preservation. The technology performs best when solving complex handling challenges that mechanical or positive pressure systems exacerbate.
Handling active pharmaceutical ingredients (APIs), toxic chemicals, or hazardous compounds requires strict isolation. Vacuum conveying offers a distinct inward leak safety advantage. If a pipeline cracks, a clamp loosens, or a gasket fails, the negative pressure pulls atmospheric air into the system. The toxic powder remains contained within the pipeline. Conversely, a positive pressure system would immediately blow the hazardous material out into the plant environment, exposing operators and forcing a facility shutdown. For high-containment applications, vacuum transfer is the only acceptable pneumatic method.
Food, beverage, and nutraceutical facilities operate under strict hygienic standards. Enclosed, crevice-free tubing prevents external contamination from entering the product stream. Vacuum systems eliminate the hard-to-clean corners found in bucket elevators or the internal bearings of screw conveyors. Modern vacuum receivers utilize 316L stainless steel and support Clean-in-Place (CIP) and Wash-in-Place (WIP) protocols. Operators can flood the system with cleaning solutions, ensuring complete sanitation between batches. This capability proves essential when handling dairy powders, infant formula, or spices where allergen cross-contamination poses a severe risk.

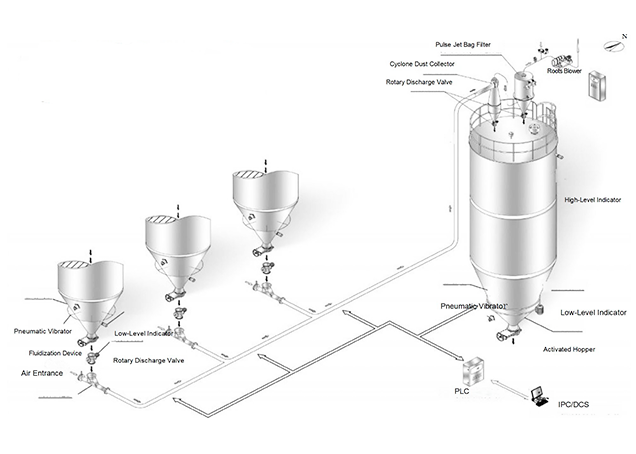

Process designs frequently require pulling different ingredients from various locations into one central mixer or reactor. Vacuum systems handle this geometry perfectly. You can install a single vacuum receiver above the mixer and route piping to multiple bulk bag unloaders, silos, or manual dump stations. By utilizing automated diverter valves, the system sequentially pulls each ingredient into the receiver. Doing this with positive pressure would require a separate blower and rotary valve at every single source, drastically increasing equipment footprint and maintenance requirements.
Manual material loading slows down high-speed packaging and processing equipment. Vacuum conveying automates the feeding of tablet presses, plastic extruders, and Vertical Form Fill Seal (VFFS) machines. A compact vacuum receiver mounts directly above the equipment inlet. As the machine consumes material, a level sensor triggers the vacuum system to pull another batch. This eliminates the need for operators to climb stairs with heavy bags of powder, ensuring the packaging line runs continuously without manual intervention.
Mechanical conveyors crush delicate materials. Augers shear particles against trough walls, altering the particle size distribution. Vacuum conveying, specifically dense phase vacuum conveying, preserves material integrity. By controlling the air-to-material ratio, dense phase systems move material in solid slugs at low velocities, often between 100 and 500 feet per minute. This gentle handling profile prevents the shattering of delicate particles like roasted coffee beans, specialized chemical prills, spray-dried powders, and pharmaceutical capsules. Dilute phase systems, which operate at velocities exceeding 3000 feet per minute, are reserved for more robust powders.
The success of any pneumatic transfer system relies entirely on how the bulk material interacts with air. You cannot specify equipment based solely on required throughput. The physical and chemical properties of the powder dictate the line size, the vacuum generator type, and the filtration requirements.
Bulk density directly influences the motive force required for transfer. Heavy materials require higher conveying velocities to remain suspended in the airstream. Pushing high-density powders at high speeds increases equipment wear and demands larger vacuum pumps. Standard vacuum systems handle materials with bulk densities ranging from 10 to 100 pounds per cubic foot efficiently. Particle size distribution also plays a critical role. Extremely fine powders fluidize easily but challenge the filtration system, while large, interlocking particles may require specialized line injectors to prevent pipeline plugging.
Moisture alters flowability. Hygroscopic materials absorb ambient humidity, transforming from free-flowing powders into sticky, cohesive masses. These materials risk bridging inside the pickup hopper, rat-holing, and plugging the conveying line. When a material becomes too sticky, standard vacuum transfer fails. Engineers must introduce specialized flow aids, such as mechanical agitators at the pickup point, fluidizing pads, or dry air blanketing, to maintain reliable transfer. If the material resembles a sludge or wet paste, vacuum conveying is no longer viable.
Conveying highly abrasive materials like silica sand, titanium dioxide, or glass cullet destroys standard stainless steel piping. As the abrasive particles navigate bends in the pipeline, they impact the outer wall of the elbow, quickly wearing through the metal. Handling abrasives requires specialized piping components. Engineers must specify ceramic-lined elbows, dead-end tees, or specialized wear-resistant deflection elbows. These components force the material to impact itself rather than the pipe wall, drastically extending the lifespan of the system.
Friction generates heat. Mechanical conveyors often warm the material they transport, which causes issues for temperature-sensitive products. Vacuum systems offer a unique advantage here. As air expands under negative pressure, it creates a slight cooling effect. This makes vacuum transfer highly suitable for materials with low melting points, such as industrial waxes, certain polymer resins, and high-fat dairy powders. The cooling effect prevents the material from smearing against the pipe walls or agglomerating during transit.
Modern processing facilities prioritize risk reduction. Upgrading to a closed-loop pneumatic system addresses major safety hazards, ensures regulatory compliance, and modernizes plant control architecture.
Airborne dust presents a catastrophic explosion risk. Facilities handling flour, sugar, wood dust, or chemical powders must adhere to strict NFPA 652 and ATEX standards. Vacuum systems inherently mitigate explosion risks by containing the dust within the pipeline and receiver. However, the movement of particles generates static electricity. Proper system design requires comprehensive grounding and bonding of all components to dissipate static charges. For highly volatile powders with low minimum ignition energies, systems can utilize inert gas purging, substituting atmospheric air with nitrogen to remove the oxygen necessary for combustion. Deflagration venting and rotary isolation valves are also standard additions for compliant systems.
Manual labor becomes a significant liability when operators repeatedly lift 50-pound bags of powder. Repetitive strain injuries, back problems, and slip-and-fall accidents on stairways drive up insurance premiums and cause labor shortages. Implementing vacuum wands and automated bag dump stations eliminates repetitive lifting. Operators simply guide a wand into a drum or slice a bag open on a waist-height grate. The vacuum system performs the heavy lifting, transferring the material vertically to the process equipment, aligning operations with strict OSHA ergonomic guidelines.
Standalone equipment isolates data. Modern vacuum systems tie directly into central Programmable Logic Controllers and SCADA networks. This integration enables precise batching and recipe management. Level sensors in the receiver communicate with automated butterfly valves to control fill cycles. Pressure differential transmitters monitor the health of the filter elements, alerting maintenance teams to potential blinding before a failure occurs. This data-driven approach supports predictive maintenance and ensures the conveying system operates at peak efficiency.
Despite its advantages, vacuum transfer is not a universal solution. The laws of physics impose strict limitations on how far and how fast negative pressure can move bulk materials. Understanding these boundaries prevents costly specification errors.
Vacuum conveying is typically restricted to distances under 300 feet. This limitation stems from atmospheric pressure. A vacuum pump can only remove air from the system; it relies on the ambient atmospheric pressure to push the material into the line. As the pipeline gets longer, friction increases, and the available atmospheric pressure becomes insufficient to maintain the necessary conveying velocity. Positive pressure systems, which can utilize blowers generating high psig, easily handle distances exceeding 1,000 feet.
The same atmospheric limitations restrict maximum throughput. While vacuum systems excel at moving 1 to 10 tons per hour, they struggle with massive bulk transfers. High-volume, continuous operations—such as unloading railcars, emptying massive storage silos, or loading cargo ships—demand the high motive force of positive pressure systems. Attempting to force high tonnages through a vacuum system requires impractically large pipelines and massive vacuum pumps, rendering the system inefficient.
Vacuum conveying naturally aligns with batch processing. The system operates cyclically: the vacuum generator turns on, the receiver fills with material, the vacuum stops, and the discharge valve opens to drop the batch into the equipment below. This cyclic nature perfectly matches the requirements of loading blenders, filling loss-in-weight feeders, or supplying batch reactors. While continuous vacuum transfer is possible using rotary airlock valves at the discharge, the inherent start-stop cycle of standard receivers makes them the ideal choice for batch operations.
Deploying a new bulk handling system introduces integration challenges. Mitigating these risks requires focusing on the physical realities of system maintenance and demanding empirical proof of performance before installation.
The filter inside the vacuum receiver acts as the system's respiratory tract. It separates the bulk material from the conveying air, allowing clean air to pass through to the vacuum pump while keeping the powder in the receiver. If this filter blinds, the pressure differential drops, conveying velocity plummets, and the system chokes. Handling fine powders requires specialized filtration media, such as PTFE-coated membranes that prevent dust penetration. Furthermore, the system must include an automated reverse-pulse cleaning mechanism. This system blasts compressed air back through the filter after every cycle, knocking accumulated dust into the receiver and maintaining optimal airflow.
Theoretical calculations fail when faced with the unpredictable nature of bulk solids. No system should be specified based on spreadsheet data alone. Mitigating implementation risk requires vendor-supplied material testing in a dedicated pilot plant. You must send a representative sample of your material to the manufacturer. During the test, engineers verify actual flow rates, measure air consumption, and analyze the powder for degradation. This physical testing confirms whether the material requires flow aids, determines the exact filter area needed, and guarantees the system will perform as promised in your facility.
Vacuum conveying stands as the definitive choice when containment, hygiene, routing flexibility, operator ergonomics, and material preservation outweigh the need for ultra-long distance or massive-tonnage transfer. By utilizing negative pressure, facilities eliminate outward dust leaks, protect fragile particles, and automate the feeding of downstream processing equipment.
As an industry leader in engineering advanced pneumatic solutions, Jstark combines decades of technical innovation with robust manufacturing excellence. Our custom-designed vacuum conveying systems empower plants worldwide to achieve unmatched material purity, strict explosion-proof compliance, and streamlined operational productivity.
Gather your Material Safety Data Sheets to identify specific combustible dust characteristics or toxicity risks.
Calculate your exact batch transfer rates and required throughput per hour based on downstream equipment capacity.
Map out your facility layout to determine the exact vertical and horizontal routing distances from source to destination.
Contact a systems integrator to schedule a physical material test with a representative sample of your specific powder.
A: Vacuum systems cannot handle sludge-like, highly cohesive, or extremely wet materials. If a material cannot be fluidized or suspended in an airstream, it will plug the pipeline. Additionally, extremely heavy or massive particles require too much motive force for standard negative pressure systems to lift efficiently.
A: Vacuum conveyors are generally limited to distances under 300 feet. The system relies on ambient atmospheric pressure to push material into the vacuum line. Over long distances, line friction overcomes this limited motive force, causing the material to drop out of suspension.
A: Dilute phase uses high velocity and low pressure to suspend particles entirely in the airstream, which can damage fragile materials. Dense phase uses low velocity and high pressure to move material in solid slugs. Dense phase prevents particle degradation and reduces wear on the piping.
A: Yes. Vacuum systems inherently prevent dust clouds from escaping into the plant environment. To meet ATEX and NFPA standards, systems utilize comprehensive grounding and bonding to prevent static discharge. For highly volatile dusts, the system can be purged with inert gases like nitrogen.
A: Air consumption depends entirely on the vacuum generator. Venturi-style generators run entirely on compressed air and can consume anywhere from 10 to 100+ CFM depending on the required throughput. Systems using mechanical vacuum pumps only require minimal compressed air for the reverse-pulse filter cleaning and valve actuation.
A: Cleaning depends on the application. Many systems feature tool-less quick-release clamps, allowing operators to dismantle the receiver and piping rapidly for dry wipe-downs. For sanitary food or pharma applications, systems are designed for wet Clean-in-Place, allowing automated washing and sanitizing without dismantling the equipment.
